FL25E is an electric-driven underground LHD, used for loading and transporting ore underground in non-coal mines, with a payload capacity of 25 tons, suitable for tunnels with the dimension of 6*6 meters or larger.

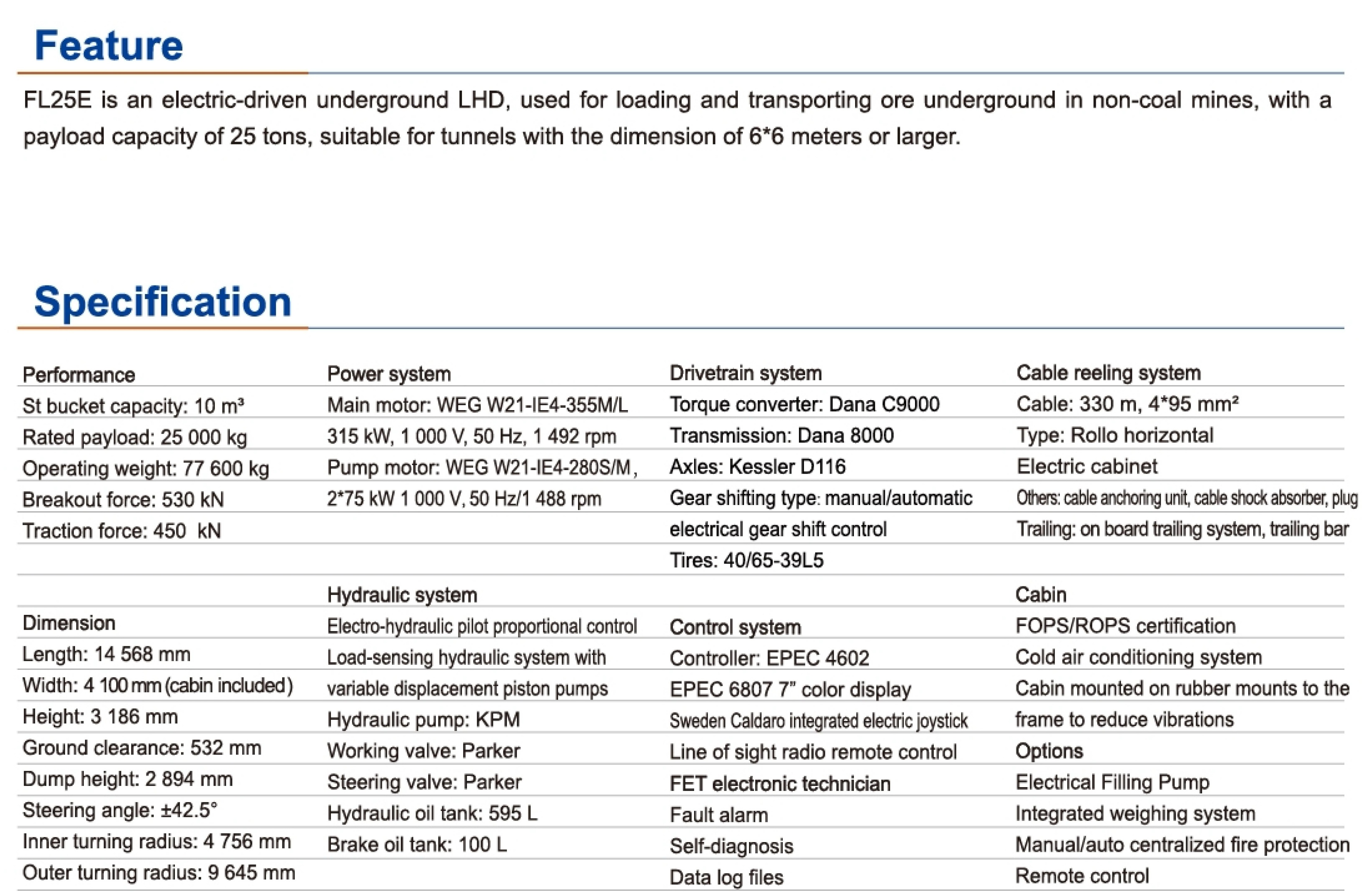

▍Specification
Performance | Power system |
| St bucket capacity: 10m³ | Main motor: WEG W21-IE4-355M/L |
| Rated payload: 25000 kg | 315kw, 1000V, 50HZ, 1492RPM |
| Operating weight: 77600 kg | Pump motor: WEG |
| Breakout force: 530kN | W21-IE4-280S/M, 2X75KW 1000 V, |
| Traction force: 450kN | 50HZ/1488rpm |
| Rated RPM: 1492 rpm | |
| Dimension | Hydraulic system |
| Length: 15124 mm | Hydraulic pump: KPM |
| Width: 4100 mm | |
| Height: 3186 mm | |
| Ground clearance: 532 mm | Working valve: Parker |
| Dump height: 2894 mm | Steering valve: Parker |
| Steering angle: ±42.5° | |
| Inner turning radius: 4756 mm | Hydraulic oil tank volume |
| Outer turning radius: 9645mm | Hydraulic Oil Tank:595 L |
| Brake Oil Tank:100 L | |
| Drivetrain system | Cable reling system |
| Torque converter: Dana C9000 | Cable:330m, 4X95mm |
| Transmission:Dana 8000 | Type: Rollo horizontal |
Axles: Kessler D116 | |
| Gear Shifting Type: Electicaly Contoled | Others: Ancla de cable, amoriguador, enchofe |
| Power Shifting Manual/Automatic | Trailing:on board traiing system,traiing bar |
| Tires: 26.5-25 | |
| Control system | Cabin |
| FET electronic technician | FOPS/ROPS Certified |
| CAN-bus technology | Cold Air Conditioning System |
EPEC 6807“Color Display | Cabin Mounted on Rubber Mounts tothe Frame to Reduce Vibrations |
Trouble alarm | Option |
Self-diagnosis | Lincoln auto lubrication system |
Data log download | Ansul auto fire suppression system |

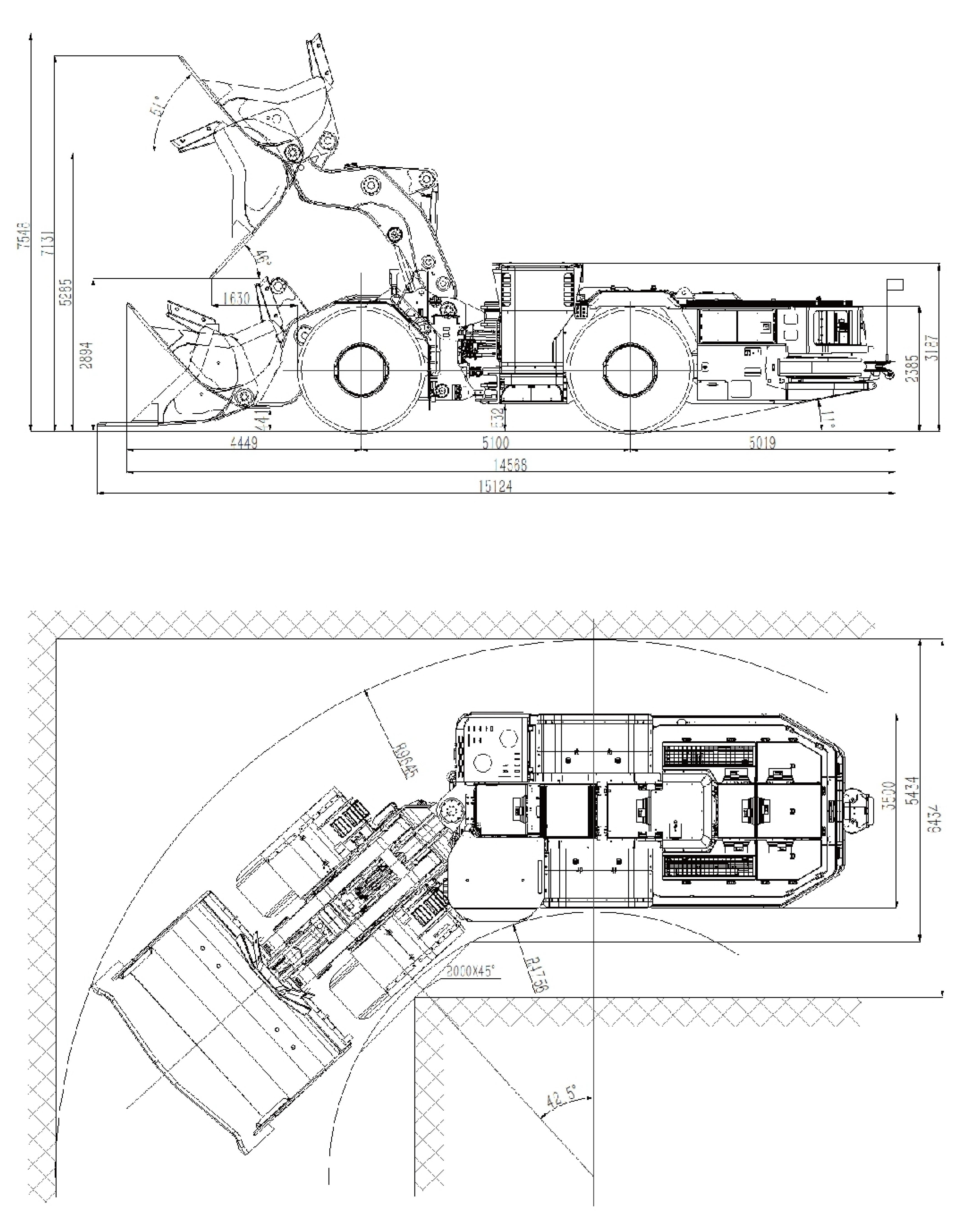

▍Device View
▍Steering view
▍Benefits
Enhanced Safety: The FOPS/ROPS-certified cabin ensures operator safety. Optional fire suppression and auto lubrication systems add extra protection in hazardous environments.
Reliable Power: Powered by a 315 kW WEG motor, the FL25E delivers consistent and efficient operation in tough underground conditions.
Maneuverability: With a tight turning radius and strong traction, it performs well in confined underground spaces, boosting efficiency in narrow tunnels.
Efficient Hydraulics: Parker hydraulic components ensure precise control and reliable performance in demanding conditions.
Durable Construction: Built with a heavy-duty drivetrain and wear-resistant tires, the FL25E is designed to withstand the demands of underground mining.
Advanced Diagnostics: Self-diagnosis and trouble alarms help reduce downtime by addressing issues before they disrupt operations.
Operator Comfort: The vibration-reducing cabin enhances operator comfort, improving productivity and reducing fatigue during long shifts.
▍Applications
Underground Mining Operations: The FL25E is designed for transporting ore and materials in non-coal mines, especially in tunnels that require high payload capacity and maneuverability.
Bulk Material Handling: Ideal for moving bulk materials in tight underground spaces, the FL25E improves productivity and reduces risks associated with manual handling.
Blasting Operations: The FL25E safely transports explosives in blasting zones, minimizing risks and preventing exposure to hazardous materials during transportation.
Mining Fleet Integration: It works seamlessly with other mining equipment, improving operational efficiency and reducing downtime across your mining fleet.
Underground Construction: Whether for tunnel construction or underground infrastructure projects, the FL25E meets material handling needs in confined environments, ensuring safe operations.
Heavy-Duty Industrial Use: The FL25E’s robust design makes it suitable for various heavy-duty industrial applications, offering reliable performance and high payload capacity in harsh conditions.
