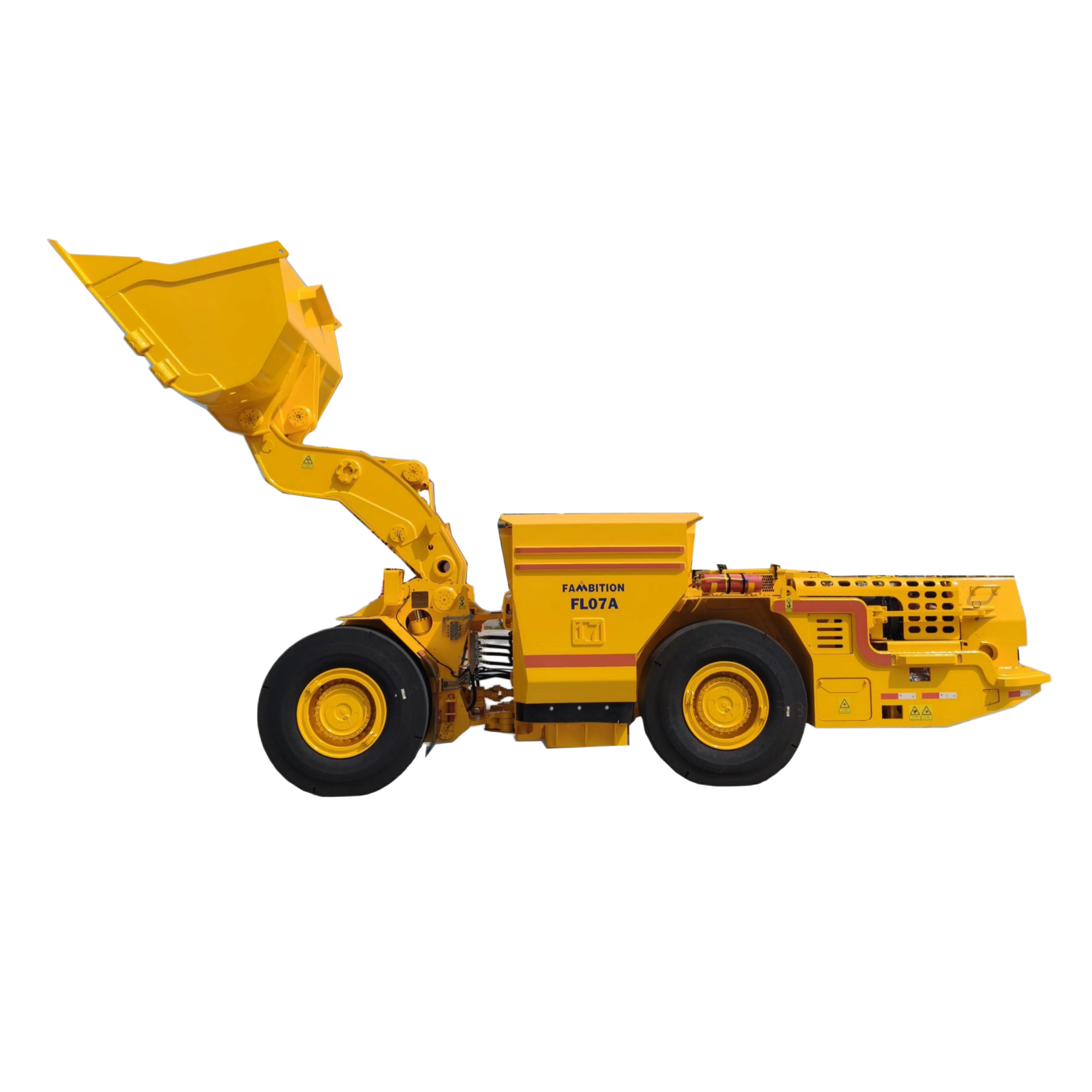

Load-Haul-Dump (LHD) machines-FL07A

Availability:
Quantity:

FL07A underground diesel LHD is designed for ore loading, hauling and dumping in non-coal underground mines, with a payload capacity of 7 tons, suitable for tunnels with the dimension of 3.5 m (width) * 3.5 m (height) or larger.



Features:

  • High-pressure common rail EFI engine of international first-class brand, with strong power and Euro Stage ⅢA emission standard

  • SAHR with forced cooling for wet brakes to ensure driving safety

  • Hydraulic pilot control for labor-saving and efficient operation

  • Engine fault monitoring to ensure driving safety

  • All parts made of international first-class brand parts to ensure stable and reliable operation of the system.


037d9d51c65297ac485899af2a4f6b6f

6a041151f3346fe834af3638cc1d2387

a2e57fd354775677cf45af290f435c3c
