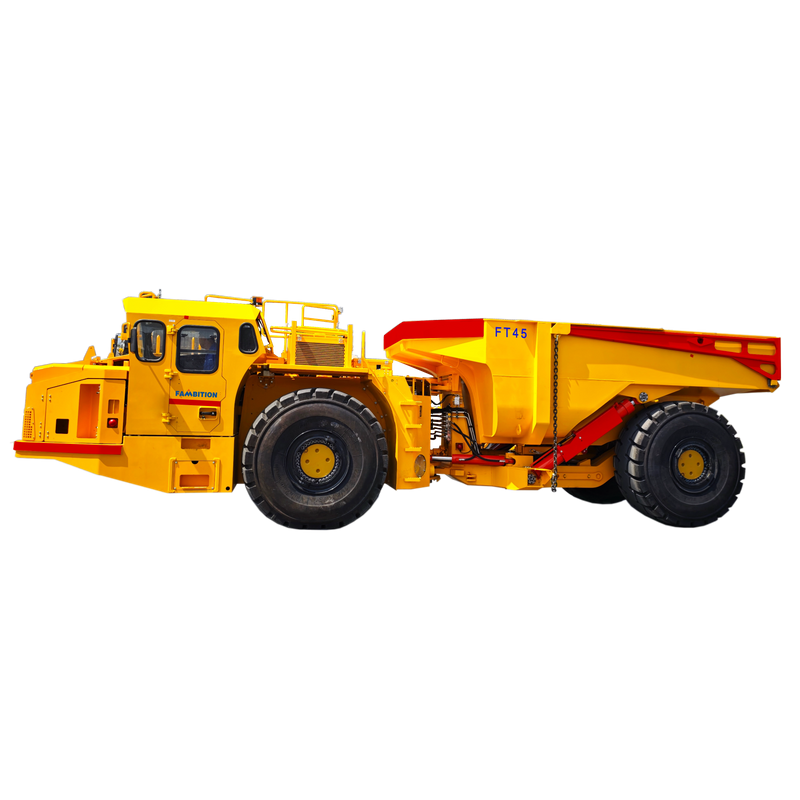

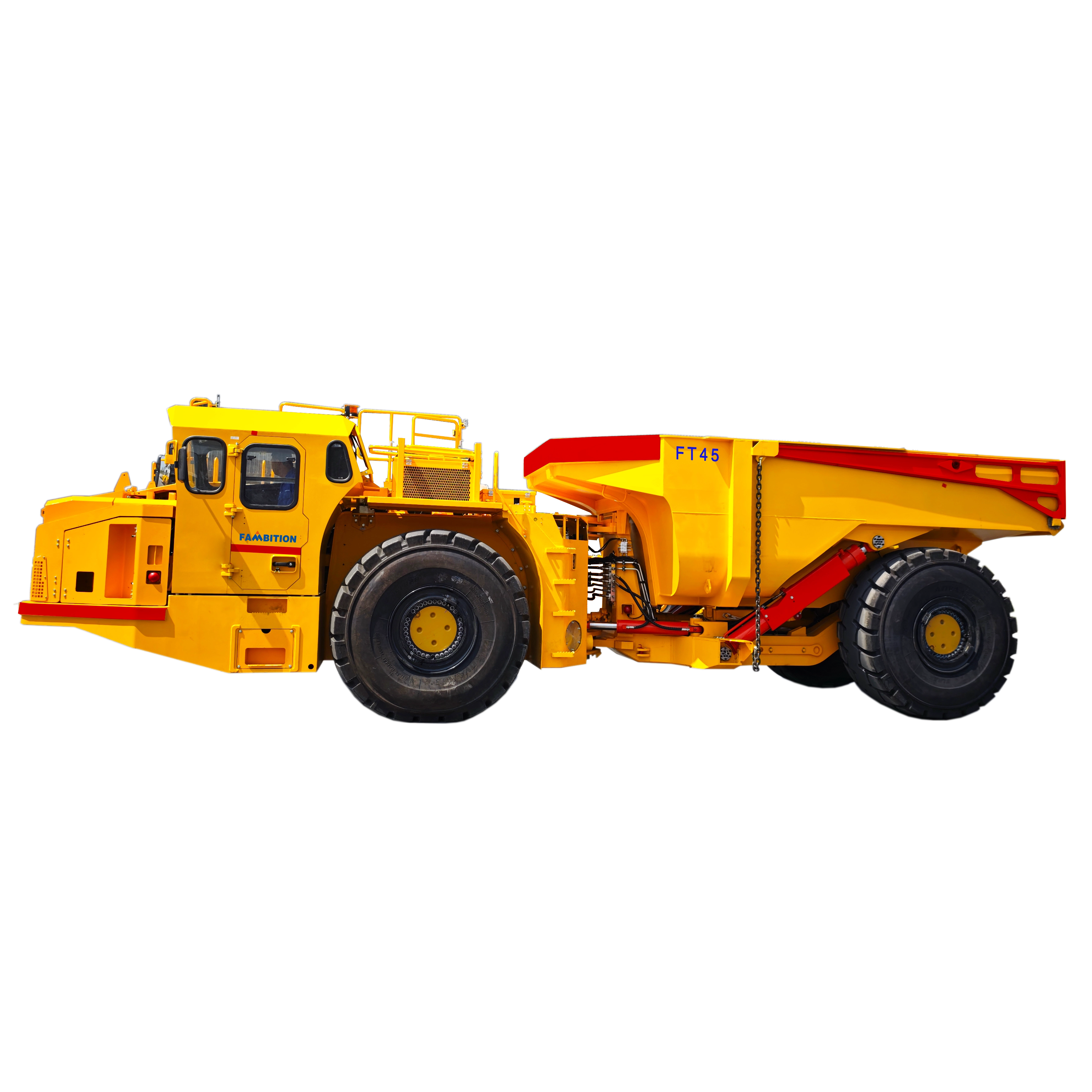

FT45 Underground Articulated Dump Truck – High-Performance Hard Rock Hauling Solution
The FT45 underground mining truck is a heavy-duty articulated dump truck specifically engineered for large-scale underground non-coal mines and tunnel construction projects. Manufactured by FAMBITION – a well-established specialized mining trackless equipment manufacturer – this 45-ton capacity underground haul truck delivers exceptional performance in the most demanding underground hard rock transportation environments.
High Payload Capacity for Maximum Productivity
With a standard dump box capacity of 22 m³ and a rated payload of 45 tons, the FT45 underground articulated truck is designed to maximize material hauling efficiency per cycle, significantly reducing the number of trips required and lowering overall operating costs per ton of ore moved.
Robust Construction for Extreme Underground Conditions
The FT45 features a centrally articulated design that provides exceptional maneuverability in confined underground tunnels. The entire vehicle is constructed from high-quality alloy steel, utilizing advanced machining processes and heat treatment techniques. Innovative design principles and compact structure, along with reinforcement at critical stress points, ensure outstanding durability and a long service life under heavy-duty operating conditions.
Advanced Technology and Safety Systems
The FT45 mining truck is equipped with cutting-edge technology to ensure safe and efficient operation:
CAN-Bus Communication Technology: Enables real-time vehicle operation status monitoring and provides fault self-diagnosis capabilities, ensuring system reliability and minimizing downtime.
FOPS/ROPS Certified Enclosed Cabin: The air-conditioned operator cabin meets FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) safety standards. Noise-reducing materials and rubber vibration isolation mounts between the cabin and frame maximize operator comfort and minimize fatigue.
Separate Cooling Systems: Independent cooling circuits for the engine, hydraulic oil, and transmission oil enhance cooling efficiency and extend component service life.
Reverse Camera: Provides clear rear visibility during backing operations, significantly improving safety during maneuvering in congested underground spaces.
Full Hydraulic Power Steering: Delivers effortless handling and precise control in tight underground roadways.
Proprietary FET Electronic Technician Technology: Self-developed diagnostic system for efficient troubleshooting and maintenance.
Variable Load-Sensing Hydraulic System: Optimizes hydraulic power output based on demand, reducing fuel consumption and heat generation.
German Grammer Suspension Seat: Provides superior ergonomic support and shock absorption for extended shift operation.
Wide Operating Range and Adaptability
The FT45 underground haul truck is designed to operate reliably in extreme environmental conditions, with a working temperature range of -25°C to +50°C (-13°F to +122°F). The recommended optimal tunnel dimensions for the FT45 are width × height ≥ 5m × 4m (≥16.4ft × 13.1ft), making it suitable for large-section underground mines and tunnel projects.
The FT45 articulated underground mining truck is primarily used for transporting hard rock in underground non-coal mines, including metal mines (copper, gold, iron, zinc, etc.) and non-metallic mineral mines. It is also well-suited for large-scale tunnel construction projects, such as highway, railway, and water conveyance tunnels
Q1: What is the payload capacity of the FT45 underground mining truck?
A1: The FT45 underground dump truck has a rated payload capacity of 45 tons (45,000 kg) with a standard dump box volume of 22 m³, making it an ideal solution for high-volume hard rock hauling in large-scale underground non-coal mines and tunnel projects.
Q2: What is the centrally articulated design and what are its advantages?
A2: The centrally articulated design features a hinge point between the front and rear frames, allowing the truck to pivot in the middle. This provides several key advantages in underground mining environments: superior maneuverability in tight tunnels, reduced turning radius for navigating narrow roadways, improved traction on uneven surfaces as all wheels maintain ground contact, and better stability during loading and dumping operations. The FT45's robust articulated construction, combined with high-quality alloy steel and reinforced critical components, ensures exceptional durability under harsh underground conditions.
Q3: What are the recommended tunnel dimensions for FT45 operation?
A3: The FT45 is designed to operate efficiently in underground tunnels with optimal dimensions of width × height ≥ 5m × 4m (approximately 16.4 ft × 13.1 ft). These dimensions ensure adequate clearance for safe maneuvering, dumping cycles, and maintenance access.
Q4: In what temperature ranges can the FT45 operate reliably?
A4: The FT45 is engineered to perform in extreme environments, with an operating temperature range of -25°C to +50°C (-13°F to +122°F). This wide range makes the FT45 suitable for mines and tunnel projects in diverse climatic conditions, from cold regions to hot desert environments.
Q5: What are the key technological features of the FT45?
A5: The FT45 incorporates several advanced technologies:
CAN-Bus Communication: Enables real-time monitoring of vehicle operation status and provides fault self-diagnosis capabilities.
FET Electronic Technician Technology: Proprietary diagnostic system for efficient maintenance and troubleshooting.
Variable Load-Sensing Hydraulic System: Optimizes hydraulic power output based on demand, reducing fuel consumption and heat generation.
Separate Cooling Systems: Independent circuits for engine, hydraulic, and transmission cooling maximize component life and reliability.
Full Hydraulic Power Steering: Delivers effortless handling in confined spaces.
