FUE05 is a blasing equipment and explosive transport vehicle specilly designed for underground mines and can cary up to 2.5 tons load. The transport vehicle adopts an articulated front and rear frame, steering with a steering gear, and a small turning radius, which is suitable for underground roadway operation. The cab is designed in accordance with ISO ROPS/FOPS cerification standards to ensure the safety of personnel. The control system is based on CAN-bus bus design, Fet electronic technicians, the on-board display screen can display the operating parameters in real time, and has the functions of fault warning and self-diagnosis.
▍Specification
Performance | Turning radius |
Rated payload 2500 Kg | Steering angle: ±40° |
Operating weight 8500 Kg | Inner turning radius: 3932 mm |
Cabin | Outer turning radius: 6108 mm |
ISO ROPS/FOPS certified | |
Speed (level, full loaded) | |
| 1st gear: 4.9 km/h | |
| Dimension | 2nd gear: 12.5 km/h |
Length: 7789 mm | 3rd gear: 23.7 km/h |
Width: 1830 m | |
Height: 2215 mm | Hydraulic System |
Ground clearance ≥309 mm | Steering pump: Danfoss |
| Charging valve/pedal valve: MICO | |
Parking solenoid: Wagers | |
| Power System | Cabin(Enclosed) |
Engine: Cummins QSB4.5, | FOPS/ROPS Certification |
electric control, water cooled, 97 | Closed Air Conditioning and Heating Cabin |
kW, Tier 3 | Three-point Contact Access System to |
Exhaust System: Canada, | Quickly Get into the Cabin |
Catalytic platinum purifier & silencer | Suspension Seat |
Transmission: DANA T20000, 3gears FWD/RVS each | |
Axle: DANA 112, mining rigid axle, | Brake System |
| oscillation±10°, fixed rear axle. | Service brake: POSI-STOP |
| Tire size: 10.00-20 | spring applied hydraulic release brrakes, |
| with reinforced oil cooling |

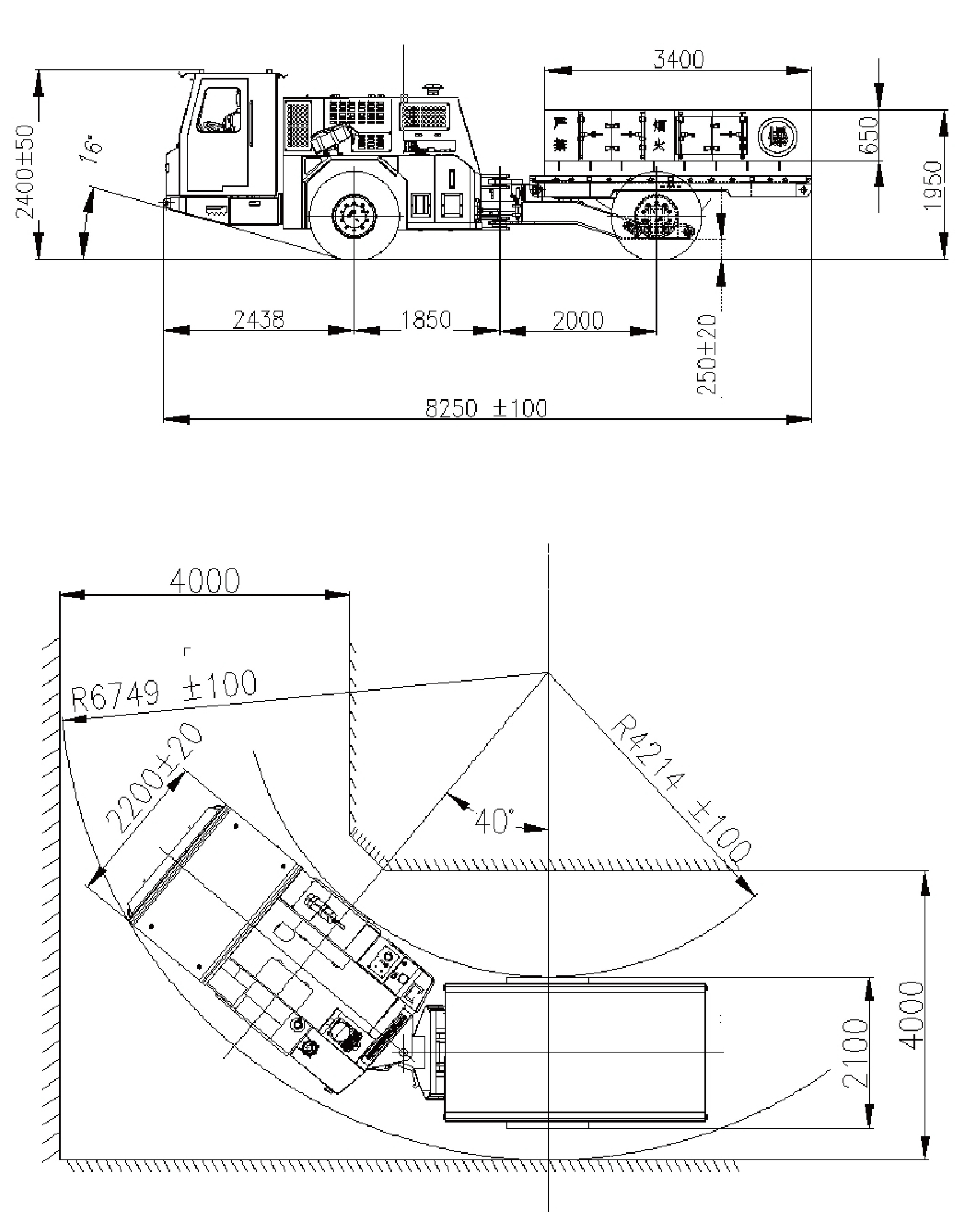

▍Device view
▍Steering view
▍Benefits
Enhanced Safety: The FUE05 features reinforced structures and specialized materials to reduce the risk of accidental detonation when transporting explosives in underground mining operations.
Durability and Reliability: Designed for extreme conditions, the FUE05 ensures consistent performance over long distances, even in harsh underground environments.
Temperature Control: With optional temperature regulation systems, the FUE05 maintains a stable environment, essential for the safe transport of temperature-sensitive explosives.
Efficient Loading and Unloading: The vehicle's design allows for quick and safe loading and unloading, optimizing time and minimizing risks in explosive material handling.
Noise and Vibration Reduction: Equipped with advanced insulation and damping systems, the FUE05 ensures a quieter, more stable environment for transporting explosives.
Fuel Efficiency: Optimized to reduce fuel consumption, the FUE05 helps lower operational costs and minimizes environmental impact, making it an eco-friendly transport solution.
Easy Maintenance: Designed for easy access to key components, the FUE05 simplifies maintenance, improving operational efficiency and extending vehicle lifespan.
▍Applications
Underground Mining: Transport explosives and materials in narrow underground tunnels. The FUE05’s compact design and small turning radius enhance maneuverability and productivity in confined spaces.
Blasting Operations: Safely move explosives to and from blasting areas, minimizing handling risks and ensuring compliance with safety regulations.
Material Handling: Transport ores and equipment efficiently through tight mining tunnels, improving material flow and reducing delays.
Mining Equipment Fleet: Integrate with your mining fleet for reliable transport, reducing downtime and optimizing material movement.
