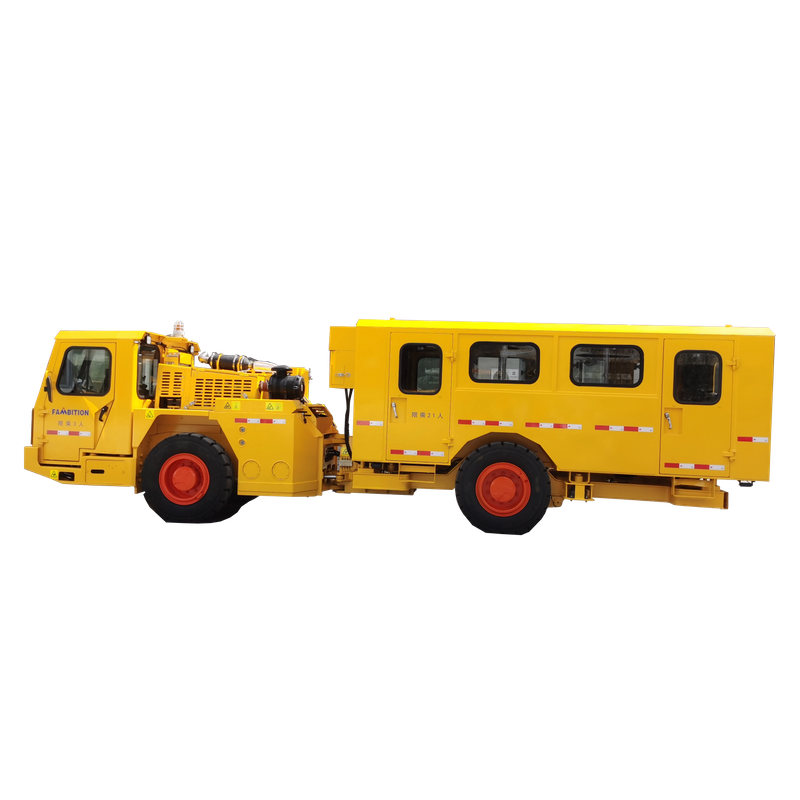

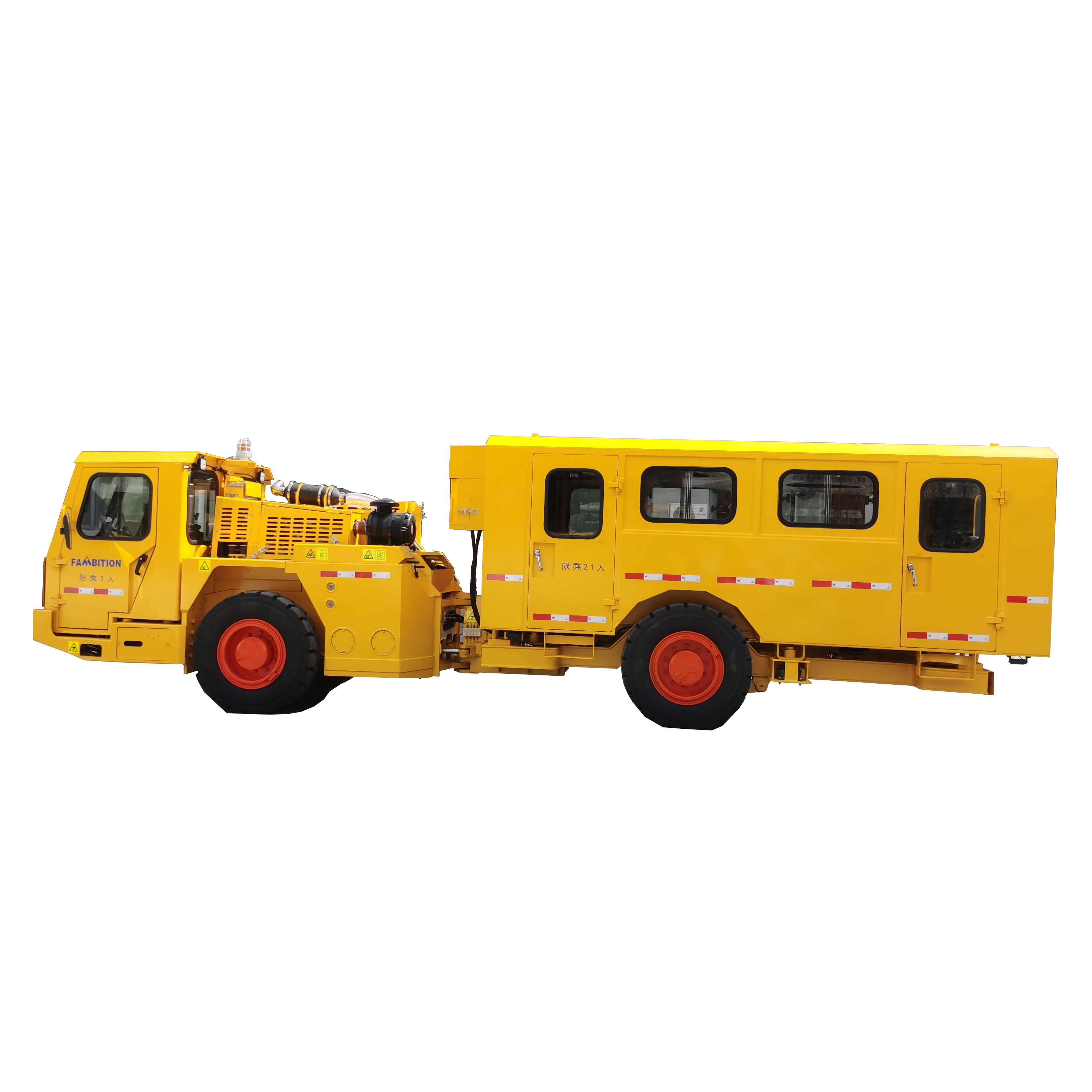

Utility vehicles-FPT24

Name: Utility vehicles-FPT24
Brand: FAMBITION
Rating: 5.0 (82 reviews)

Built to move large crews quickly and safely deep underground. The FPT24 carries 24 people in one smooth, comfortable ride, cutting shift-change delays and keeping your mine running at full speed. Its compact articulated design slips easily through tight tunnels, while the enclosed air-conditioned cabin and powerful low-emission Cummins engine deliver comfort and reliability shift after shift.

Quantity:
Availability:





Inquire Add to Basket

Model:
FPT24
Brand:
FAMBITION

Product Description

Features

The FPT24 is a 24-passenger underground personnel carrier designed specifically for transporting personnel in non-coal underground mines and tunnel projects, capable of safely and efficiently transporting miners and workers.

The vehicle features a central articulated chassis paired with a fully hydraulic power steering system. Its compact design provides excellent maneuverability in narrow underground tunnels, allowing it to easily navigate sharp turns, steep slopes, and confined spaces.

All critical components—including the engine, transmission, hydraulic system, and control unit—are sourced from leading international brands, ensuring stable and reliable system operation, minimizing downtime, and providing the highest level of safety for up to 24 passengers.

Key Features:

24-passenger capacity – Maximizes transport efficiency per trip

Central articulated chassis – Agile maneuverability in confined spaces

Fully hydraulic power steering – Light handling and precise steering

Compact structural design – Optimized for low-clearance tunnels

Applications

Personnel transport in underground metal mines, non-metal mines, and large-scale tunnel projects

Specification

Category	Specification
Performance	Carrier capacity: 24 persons Rated payload: 2,400 kg Operating weight: 13,000 kg Max. traction force: 133 kN Environmental temperature: -20℃~+50℃
Speed (Level, Full Load)	1st gear: 5.2 km/h 2nd gear: 11.0 km/h 3rd gear: 22.0 km/h
Hydraulic System	Fully hydraulic powered steering Steering pump: Danfoss variable displacement piston pumps Charging valve & service brake valve: MICO Brake accumulator: Parker Hydraulic oil tank: 130 L (Donaldson oil return filter)
Cabin (Enclosed)	FOPS/ROPS certification Cold air conditioning in cabin and personnel compartment Three-point contact access system Mechanical suspension seat Reverse camera
Dimensions	Length: 8,568 mm Width: 2,040 mm Height: 2,462 mm Ground clearance: 313 mm Steering angle: ±40° Inner turning radius: 3,930 mm Outer turning radius: 6,531 mm
Power System	Engine: Cummins QSB4.5 EFI, water cooled, 119 kW @ 2,300 rpm, 624 Nm @ 1,500 rpm, Tier 3 / Euro Stage III B Exhaust system: DOC catalytic purifier & muffler Transmission & torque converter: Dana 24000 Electrically controlled gear shifting Axle: Dana 123 SAHR, limited slip differentials Rear axle fixed, front axle oscillating ±10° Tire size: 10.00 – 20 PR16
Electrical System	Electric relay: Bosch Circuit breaker: ABB Connector: TE Controller: HYDAC TTC60 Engine fault detection Battery: 2*12 V Camel
Safety & Options	Flashing beaconPortable fire protection 3*4 kg Alarm horn 107 dB Communication system between cabin and personnel compartment Emergency stop button in personnel compartment Front and rear LED lightsTurning signals and brake lights
