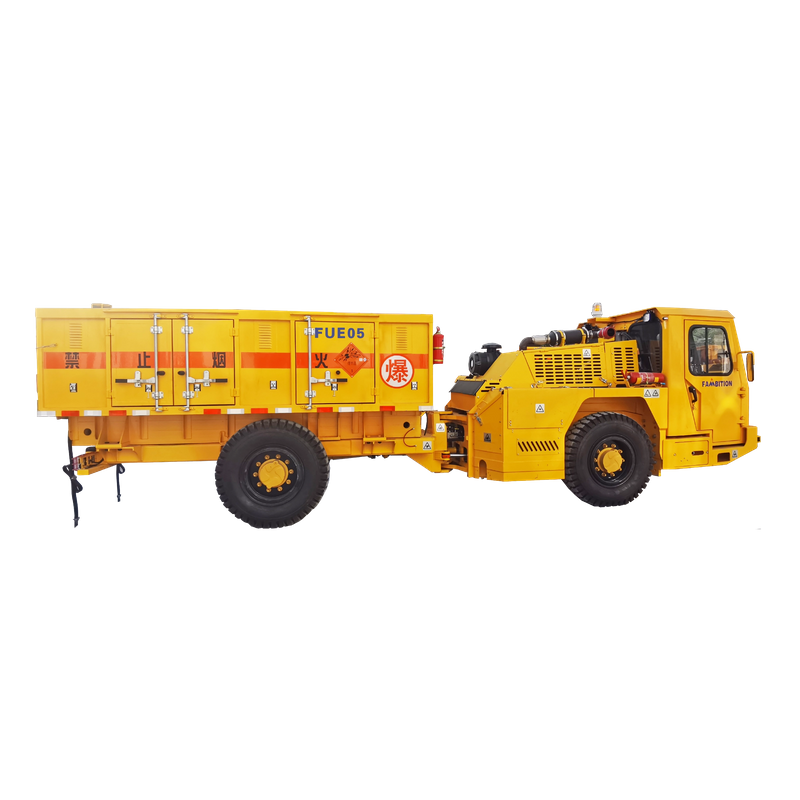

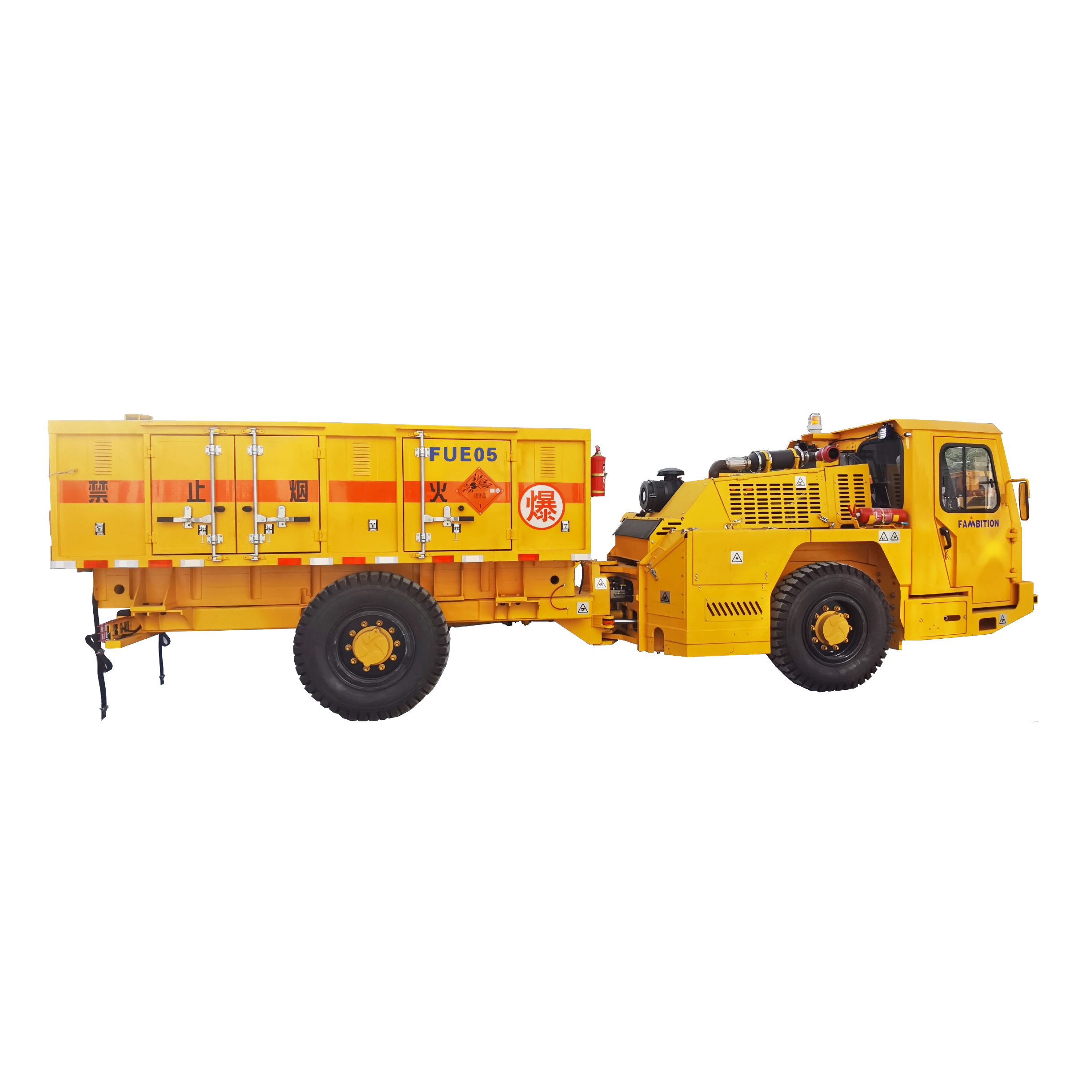

The FUE05 is a trackless explosives transport vehicle with a maximum payload capacity of 5 tons. This model features high-quality international-standard components, an articulated frame, and a full-hydraulic power steering system. Its braking system utilizes fully enclosed, multi-disc wet brakes integrated with SAHR technology, while power is supplied by a low-emission Cummins turbocharged engine compliant with National IV emission standards. The operator cabin is FOPS/ROPS certified and equipped with a built-in multi-functional display that allows for real-time monitoring of equipment status and provides troubleshooting support.
Thanks to a universal quick-change chassis system, the vehicle can rapidly switch between various functional attachments to meet diverse operational requirements. The entire quick-change mechanism allows for tool replacement to be completed within five minutes.
| Category | Details |
|---|---|
| Performance | Payload capacity: 5,000 kg Compartment dimension: 3,200 × 5,500 × 1,800 mm Compartment door width: 1,700 mm Compartment door number: 5 PC Maximum traction force: 110 kN |
| Dimension | Length: 8,250 ± 100 m mWidth: 2,200 ± 20 mm Height: 2,400 ± 50 mm Ground clearance: 250 ± 20 mm Steering angle: ±40° Inner turning radius: 4,214 ± 100 mm Outer turning radius: 6,749 ± 100 mm |
| Speed (Level, full load) | 1st gear: 5 ± 1 km/ h2nd gear: 12 ± 1 km/h 3rd gear: 24 ± 1 km/h |
| Power System | Engine: Cummins B5.9CS 4EFI, water cooled, Tier 4, Euro Stage IV 129 kW @ 2,200 rpm, 760 N·m @ 1,600 rpm |
| Exhaust System | DOC catalytic purifier and muffler |
| Fuel Tank Capacity | 140 L |
| Hydraulic System | Fully hydraulic powered steering Charging valve & service brake valve: MICO Brake accumulator: Leemin (Oil return filter) Hydraulic oil tank: 200 L |
| Electrical System | Electric relay & circuit breaker: Schneide rController: Finland EPEC Engine fault detection |
| Cabin (Enclosed) | FOPS/ROPS certification Cold air conditioning Two doors for the cabin Forward driving Three-point contact access system to quickly get into the cabin Low frequency suspension seat Vehicle backup camera Two-seater cabin Windscreen wiper outside the cabin |
| Safety | Flashing beacon Portable fire protection 1 × 6 kg Smoke alarmVentilation system |
| Options | Automatic fire protection syste mAutomatic centralized lubrication |
