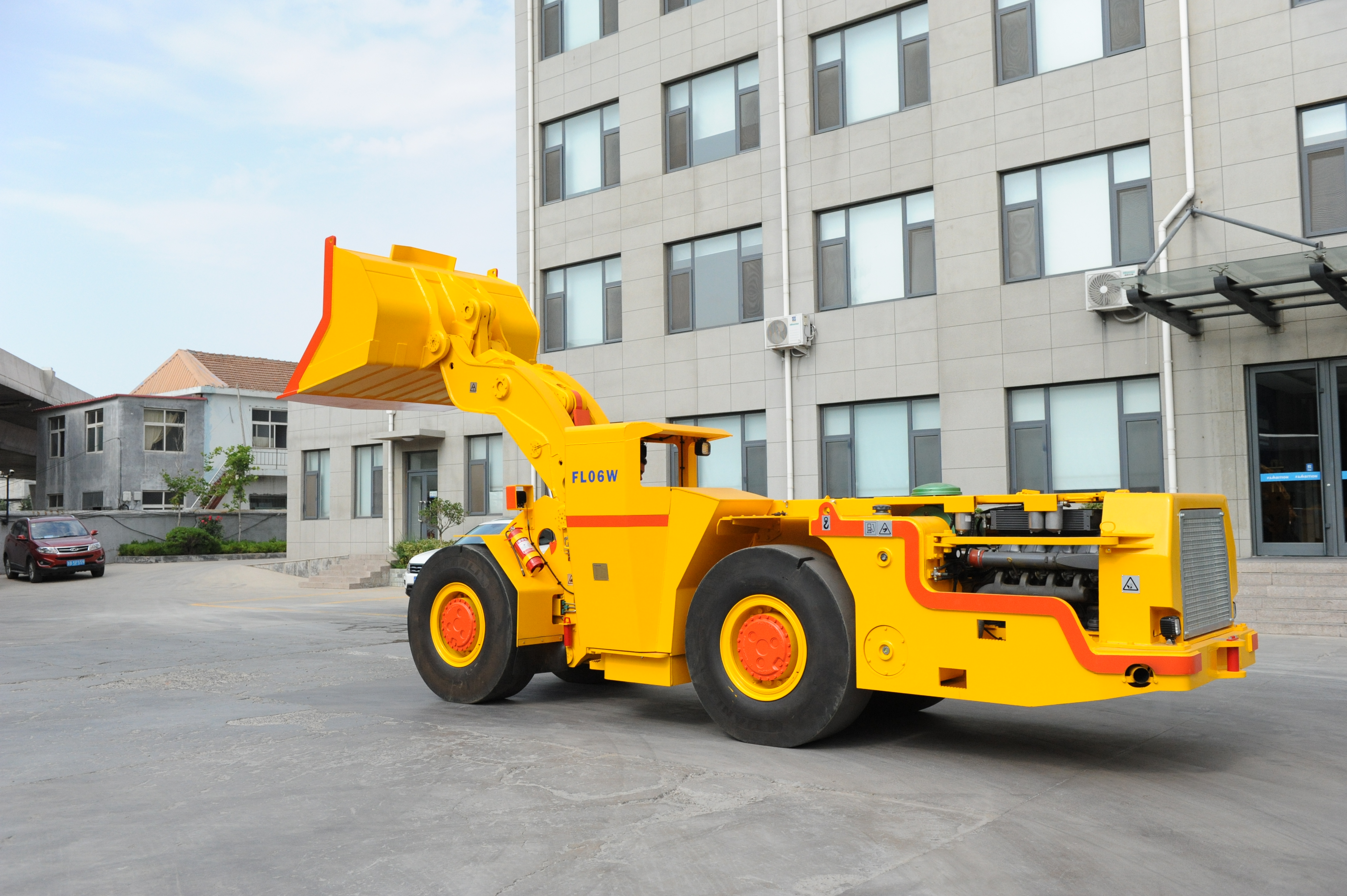

A mining lhd is a special machine for underground mining. You use it to load, carry, and dump materials. It helps move ore and waste fast and safely. The machine takes them from the mining face to the transport system. Using these machines makes work faster and safer. It also helps lower the chance of accidents. Many places now use battery-electric models. These models cut down on diesel emissions. They help make the air cleaner underground. These changes help your work and protect the environment.
Mining LHDs are important machines in underground mining. They help move materials safely and quickly. These machines make work easier for miners. LHDs help load, haul, and dump ore and waste fast. This helps workers finish jobs faster and smoother. Electric and battery-powered LHDs make less pollution. They help keep the air cleaner underground. This supports goals to protect the environment. New LHDs have automation features for safety. These features let operators control machines from far away. This helps them stay out of dangerous places. You must pick the right mining LHD for your mine. You can choose diesel, electric, or battery types. The best choice depends on your mine’s needs and the environment.
You may hear the term load-haul-dump when people talk about underground mining. This name describes a special type of machine you use to move materials deep inside mines. Mining lhd machines help you load rocks or ore, haul them through tunnels, and dump them at a chosen spot. These machines work like front-end loaders, but they fit into tight spaces underground. You can rely on them to handle tough jobs in hard rock mining. Their strong build and easy movement make them perfect for shifting heavy loads. Over 75% of underground metal mines use load-haul-dump machines because they boost productivity and keep work running smoothly.
Tip: If you want to work faster and safer underground, you should use mining lhd equipment. These machines are designed for hard rock mining and can handle muck with ease.
LHD stands for "Load Haul & Dump" machines.
You use these loaders in underground mining.
They operate much like regular front-end loaders.
Their main job is to load and transport ores and minerals.
Most underground metal mines depend on load-haul-dump machines for daily work.
You might wonder why the name load-haul-dump is so important. The name tells you exactly what the machine does. You load material, haul it away, and dump it where you need. This clear name helps you understand the main function without confusion. When you see mining lhd in action, you know it is built for these three steps. The name also helps you pick the right equipment for your mine. If you need a machine that can do all three jobs, you look for load-haul-dump machines. This saves you time and helps you make smart choices for your mining operation.
When you work underground, you need a machine that loads fast and safe. A mining lhd gives you this ability. You use it to scoop up ore, rock, or waste from the mining face. The bucket is at the front and picks up loose material easily. It works well even in small spaces. This design lets you work in narrow tunnels.
Note: Mining LHDs are very important in underground mining. They load, move, and dump materials in tight tunnels. Their job helps your work go faster and smoother, even in hard places.
The loading part of a mining lhd is not like other machines. Here is what makes it different:
The main job of a mining lhd is to load, haul, and dump loose material. Mining trucks carry bigger loads over longer distances.
The low shape of a mining lhd helps you fit in small spaces. The bucket is in front, but mining trucks have a higher body and a truck bed.
You can turn easily with an articulated chassis. This helps you do short-haul jobs underground, unlike the stiff frame of mining trucks.
You can see how much modern mining lhd machines can load in this table:
Parameter | Industry Standard Range | Fambition LHD Series |
|---|---|---|
Payload Capacity (t) | 8 - 25 | 10 - 22 |
This means you can move lots of material in one trip. Some models use automation to help you load faster and safer. Automation can control the bucket and help you avoid mistakes. This makes your work easier.
After loading, you need to move the material somewhere else. In underground mining, you use a mining lhd to haul the load through tunnels. The machine moves short distances, usually less than 1,000 feet. This is good for most underground mines.
You can trust a mining lhd to haul where trucks cannot go. Its low height and strong build let you work in places with low ceilings.
The articulated chassis lets you turn sharp corners and reach hard spots underground.
When you get to the dumping spot, you use the bucket to unload. Dumping is quick and safe. You can dump ore into a crusher, a conveyor, or a waiting truck. This step keeps your mining work moving without stopping.
Benefit | Description |
|---|---|
Navigation | You can steer through tight spaces, making material transport more efficient. |
Cost-Effectiveness | You spend less on transport and maintenance. |
Energy Efficiency | Newer mining lhd models use energy recovery systems, saving power per ton. |
Some mining lhd machines now use automation for hauling and dumping. Automation helps you follow the best path and stay away from danger. This technology makes your underground work safer and better.
Tip: If you want to make your underground mining better, pick a mining lhd with automation. These machines help you load, haul, and dump with less work and more safety.
A mining lhd is made for hard work underground. Every part helps the machine stay strong, safe, and work well. Most mining lhds have these main parts:
Chassis and Frame: This is the tough base. It holds up the whole machine and carries heavy things.
Power System: You can use a diesel engine, electric motor, or battery pack to make the lhd move.
Hydraulic System: This part lets you lift, tilt, and move the bucket easily.
Bucket and Attachments: The bucket picks up and carries ore, rock, or waste. Some lhds let you change attachments for special jobs.
Operator Cabin: You sit inside a safe space. It has controls, screens, and safety tools.
Transmission System: This sends power from the engine to the wheels.
Braking System: You can stop fast and safely, even on steep hills.
Cooling System: This keeps the engine and hydraulics cool during long work hours.
Electrical System: You use this for lights, sensors, and control panels.
Small mining lhds use the same main parts. They are just smaller and easier to move. This helps you work in tight tunnels with little space.
You want your mining lhd to work well every day. Many things help you get good results underground:
Breakout Force: This is the power your lhd uses to dig into hard rock or packed ore. If the breakout force is higher, you can load faster and handle tough material.
Speed and Efficiency: You need a machine that moves quickly between loading and dumping spots. Direct drive wheel motors give you more power and smoother movement. This helps you finish more trips in less time.
Reliability: Mining lhds must work in tough places. You want a machine that runs every day with few problems. Strong frames, good cooling systems, and smart checks help you avoid breakdowns and keep working.
Operator Comfort: Your comfort is important for safety and doing a good job. New mining lhd cabins have smart screens that show how the machine is working. Easy-to-use controls and soft seats help you feel less tired during long shifts. Systems that lower vibration protect your health and help you focus. When you feel good, you make fewer mistakes and work better.
Tip: Comfortable operators do better work and are less likely to hurry, which helps stop accidents. If you feel uncomfortable, you might miss safety steps.
Environmental Standards: New mining lhd models follow strict rules for emissions and air quality underground. You will see features like better diesel engines, filters for cleaner air, and special systems to lower pollution. Some machines use gas and dust monitors to keep the air safe. Battery-electric models, like the R2900 XE, help you lower emissions and improve air flow.
Note: Meeting environmental rules keeps your team safe and helps you avoid fines. Good air systems and dust control also make your mine safer.
When you pick a mining lhd, look for these features to get the best mix of power, efficiency, and safety. Big mining lhds give you strength and reliability for large jobs, while small ones help you work in tight spaces.
When you pick a mining lhd, you should know the main types. Each type uses a different kind of power. Some work better in certain places. You can choose from many sizes and shapes. Big companies like Caterpillar and Epiroc make these machines.
Diesel mining lhds use strong diesel engines. They give you lots of power and can run for a long time. These machines are good for deep mines or places far from electricity. For example, the DALI WJ-3 LHD has 164kW of power. It can carry up to 7,000 kg. Diesel mining lhds can work for many hours before refueling. You need to check the engine and fuel system often. This can cost more money. Diesel mining lhds make exhaust, so you need good air systems underground.
Tip: Diesel mining lhds move well and have strong power. You must watch out for emissions and keep the air clean.
Electric mining lhds use electric motors. They often need a cable to work. These machines do not make emissions where you use them. This helps keep the air clean underground. Electric mining lhds are best for shallow mines or places with good air flow. They need less fixing because they have fewer moving parts. The cable can limit how far you go. You save money over time because they cost less to run.
Battery mining lhds use battery packs you can recharge. They do not make emissions and are quiet. This makes them great for closed or sensitive underground places. Battery models help you save money on air systems. You do not need to remove diesel fumes. You can plan charging times to fit your mine. Battery electric mining lhds can lower greenhouse gases by up to 63% compared to diesel mining lhds. If you use clean electricity, you can cut emissions even more.
Here is a table to help you compare the main types:
Type | Power Source | Key Features | Typical Applications |
|---|---|---|---|
Diesel LHD | Diesel engine | High power, emits exhaust | Deep mines, remote sites |
Electric LHD | Electric motor | Zero emissions, cable needed | Shallow mines, ventilated areas |
Battery-Electric LHD | Battery pack | Zero emissions, low maintenance | Enclosed, sensitive environments |
Note: Electric mining lhds and battery models need less fixing than diesel mining lhds. You spend less time and money on repairs. You must plan for charging or cable use.
You can choose from many sizes and features. Caterpillar and Epiroc have mining lhd models for every kind of underground mining. Pick the type that matches your mine’s needs for power, emissions, and cost.
You want to move more material in less time. A mining lhd helps you work faster and easier. Real-time dispatch tools can make your mine up to 10% more productive. Some mines get a 20% boost with advanced systems like the ORB system.
You can do more trips each day because loaders work quickly. They help you load, haul, and dump faster.
Small machines with the right bucket size make each trip quicker.
Shorter work cycles let you move more ore every day.
Small loaders fit in tight spaces, so you turn and back up less.
Evidence | Description |
|---|---|
Cycle Time Optimization | If you make hauling ore faster, you can do more trips and increase mine production. |
Role of LHDs | These machines are very important in mines and help you work better. |
Factors Influencing Cycle Time | You can change how far you haul and dump to make each cycle faster. |
Tip: To get more from your mine, use the right loader for your space and keep your work cycles short.
You need to keep your team safe and protect nature. New mining lhd machines have many features for safety and the environment. For safety, you get strong cabins and rollover protection. Adjustable seats and easy controls help you stay comfortable and focused. Real-time systems warn you about dangers, and emergency systems can stop the machine if needed.
Safety Feature | Description |
|---|---|
Rollover Protection | Strong cabins and special parts keep you safe in accidents. |
Ergonomic Designs | Adjustable seats and smart controls help you feel less tired. |
Advanced Monitoring Systems | Warnings and real-time checks help stop accidents. |
Emergency Systems | Automatic stops and brakes keep you safe in emergencies. |
Electric and battery loaders help lower air pollution underground. These machines do not make diesel fumes, so the air is cleaner. You also spend less on air systems because there are fewer exhaust gases. Battery electric loaders use energy better and help make mining greener.
Electric and battery models remove diesel fumes, so the air is safer.
Cleaner air means a healthier place to work.
Using less diesel lowers energy costs for air systems.
Regenerative braking in battery models saves energy and helps the environment.
Note: Picking electric or battery loaders helps you follow environmental rules and keeps your mine safer for everyone.
You use a mining lhd to move materials underground. It helps you load, haul, and dump things safely. These machines are very important in mining today. They help you work faster and keep you safe.
Automation lets you do more work and lowers danger.
Electric and battery models make the air cleaner and save money.
Smart systems give you real-time data to help fix machines and spend less.
In the future, there will be more electric and self-driving machines. Safety will get better, and technology will be even smarter for your mine.
LHD means Load-Haul-Dump. You use this machine to load material, haul it through tunnels, and dump it at a chosen spot. The name shows you the three main jobs it does underground.
You look at your mine’s size, tunnel width, and power needs. Pick a diesel, electric, or battery model that fits your space and meets your safety and environmental goals. Ask your team what features help them work best.
Yes. You use battery-electric LHDs to lower emissions and improve air quality underground. These machines do not produce diesel fumes. You help your team breathe easier and meet environmental rules.
You check your mining LHD every day before use. Follow the manufacturer’s schedule for deeper checks. Regular maintenance helps you avoid breakdowns and keeps your machine working safely.
Yes. Many new mining LHDs let you use remote controls or automation. You can stay safe by working from a distance. Automation helps you avoid dangerous areas and work more efficiently.
