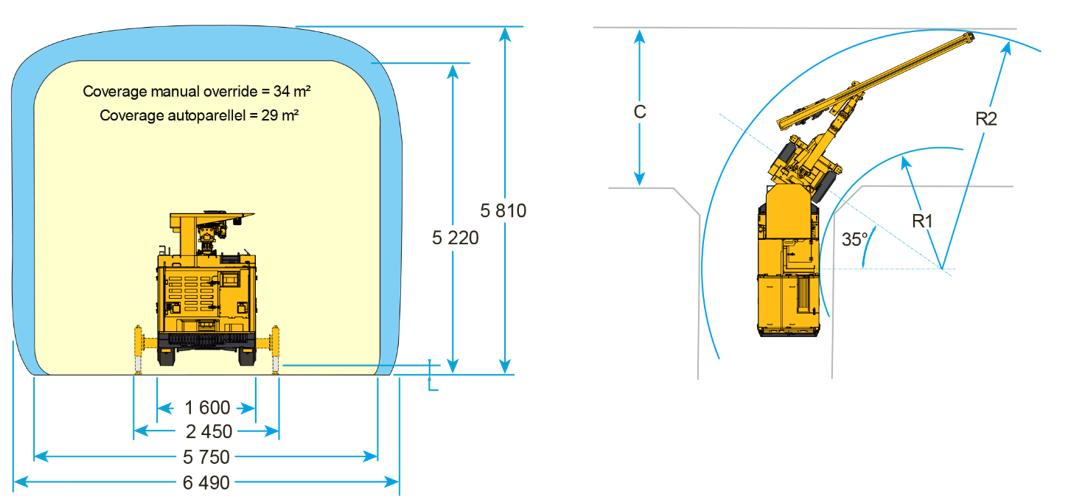

FHD2715 is a compact and flexible single boom electro-hydraulic jumbo for development drilling in narrow vein and mass mining as well as in tunneling, in cross sections up to 34 m² .
FHD2715 is equipped with the MONTABERT HC95 hydraulic rock drill, which delivers 20 kW of percussion power. It features a dual buffer design, high idle rotation efficiency, and anti-jamming design, achieving high penetration rate and good rock tool life under various rock conditions. The professionally designed drill arm is equipped with 360 ° feed rotation, automatic parallelism and a large and optimally shaped coverage for fast and accurate face drilling and versatility.

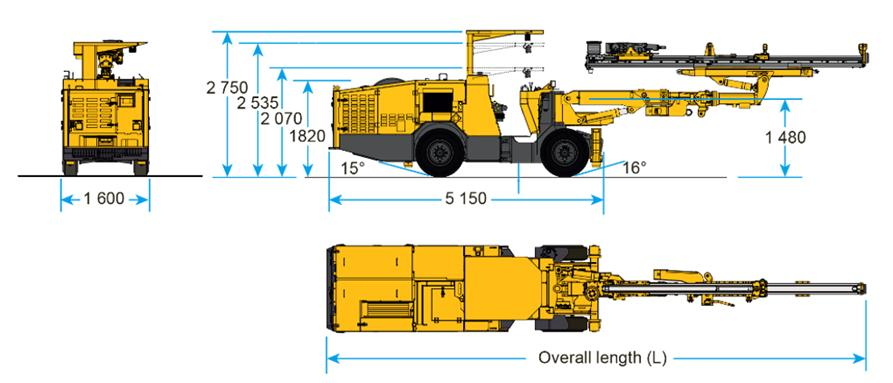

The whole machine adopts a 4-wheel hydrostatic drive chassis, central articulated steering, diesel power drive for walking, which features a FOPS-approved safety canopy, and layout designed for good visibility and stability in tramming in small mining drifts and tunnels with cross-section (width*height) minimum 2.7 m*3.0 m and maximum 6 m*6 m. The operating and maintenance interface are designed for easy access, safe operation.
Main technical features:
Central articulated structure, fully hydraulic powered steering, hydrostatic four-wheel drive, small turning radius and strong passability
High-quality alloy steel, advanced machining technology, heat treatment technology and innovative design ensure that the vehicle body structure is sturdy and durable
Adjustable roof with FOPS certification to ensure driving safety
Main components of the vehicle made of world-class brands to ensure stable and efficient operation
Deutz low-pollution engines to meet the Euro Stage V emission standards
FHD2715 is a compact and flexible single boom electro-hydraulic jumbo for development drilling in narrow vein and mass mining as well as in tunneling, in cross sections up to 34 m² .
FHD2715 is equipped with the MONTABERT HC95 hydraulic rock drill, which delivers 20 kW of percussion power. It features a dual buffer design, high idle rotation efficiency, and anti-jamming design, achieving high penetration rate and good rock tool life under various rock conditions. The professionally designed drill arm is equipped with 360 ° feed rotation, automatic parallelism and a large and optimally shaped coverage for fast and accurate face drilling and versatility.
The whole machine adopts a 4-wheel hydrostatic drive chassis, central articulated steering, diesel power drive for walking, which features a FOPS-approved safety canopy, and layout designed for good visibility and stability in tramming in small mining drifts and tunnels with cross-section (width*height) minimum 2.7 m*3.0 m and maximum 6 m*6 m. The operating and maintenance interface are designed for easy access, safe operation.
Main technical features:
Central articulated structure, fully hydraulic powered steering, hydrostatic four-wheel drive, small turning radius and strong passability
High-quality alloy steel, advanced machining technology, heat treatment technology and innovative design ensure that the vehicle body structure is sturdy and durable
Adjustable roof with FOPS certification to ensure driving safety
Main components of the vehicle made of world-class brands to ensure stable and efficient operation
Deutz low-pollution engines to meet the Euro Stage V emission standards
