FPT24
FAMBITION

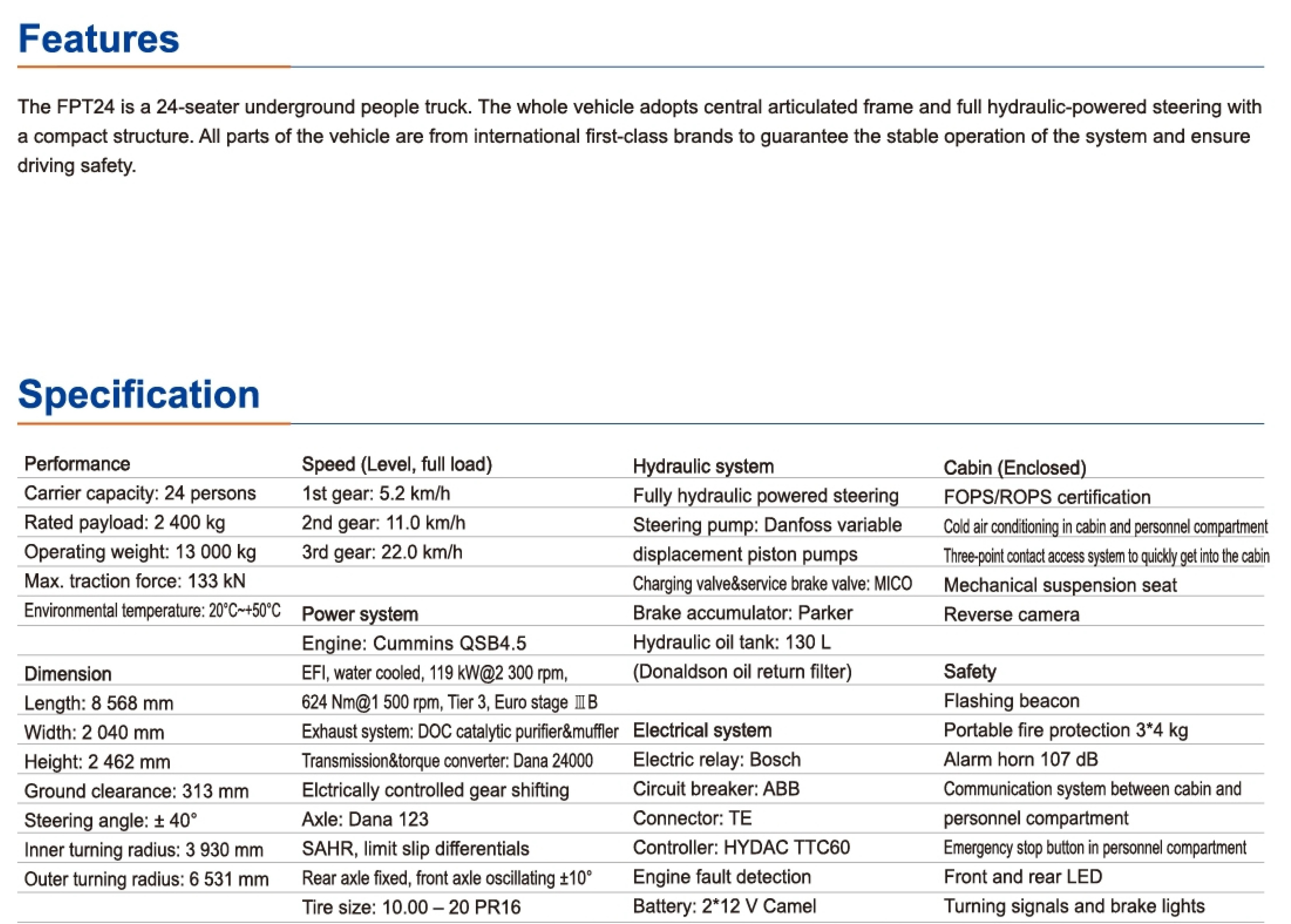

The FPT24 is a 24-seater underground people truck. The whole vehicle adopts central articulated frame and full hydraulic-powered steering with a compact structure. All parts of the vehicle are from international first-class brands to guarantee the stable operation of the system and ensure driving safety.
| Category | Specification |
|---|---|
| Performance | Carrier capacity: 24 persons Rated payload: 2,400 kg Operating weight: 13,000 kg Max. traction force: 133 kN Environmental temperature: -20℃~+50℃ |
| Speed (Level, Full Load) | 1st gear: 5.2 km/h 2nd gear: 11.0 km/h 3rd gear: 22.0 km/h |
| Hydraulic System | Fully hydraulic powered steering Steering pump: Danfoss variable displacement piston pumps Charging valve & service brake valve: MICO Brake accumulator: Parker Hydraulic oil tank: 130 L (Donaldson oil return filter) |
| Cabin (Enclosed) | FOPS/ROPS certification Cold air conditioning in cabin and personnel compartment Three-point contact access system Mechanical suspension seat Reverse camera |

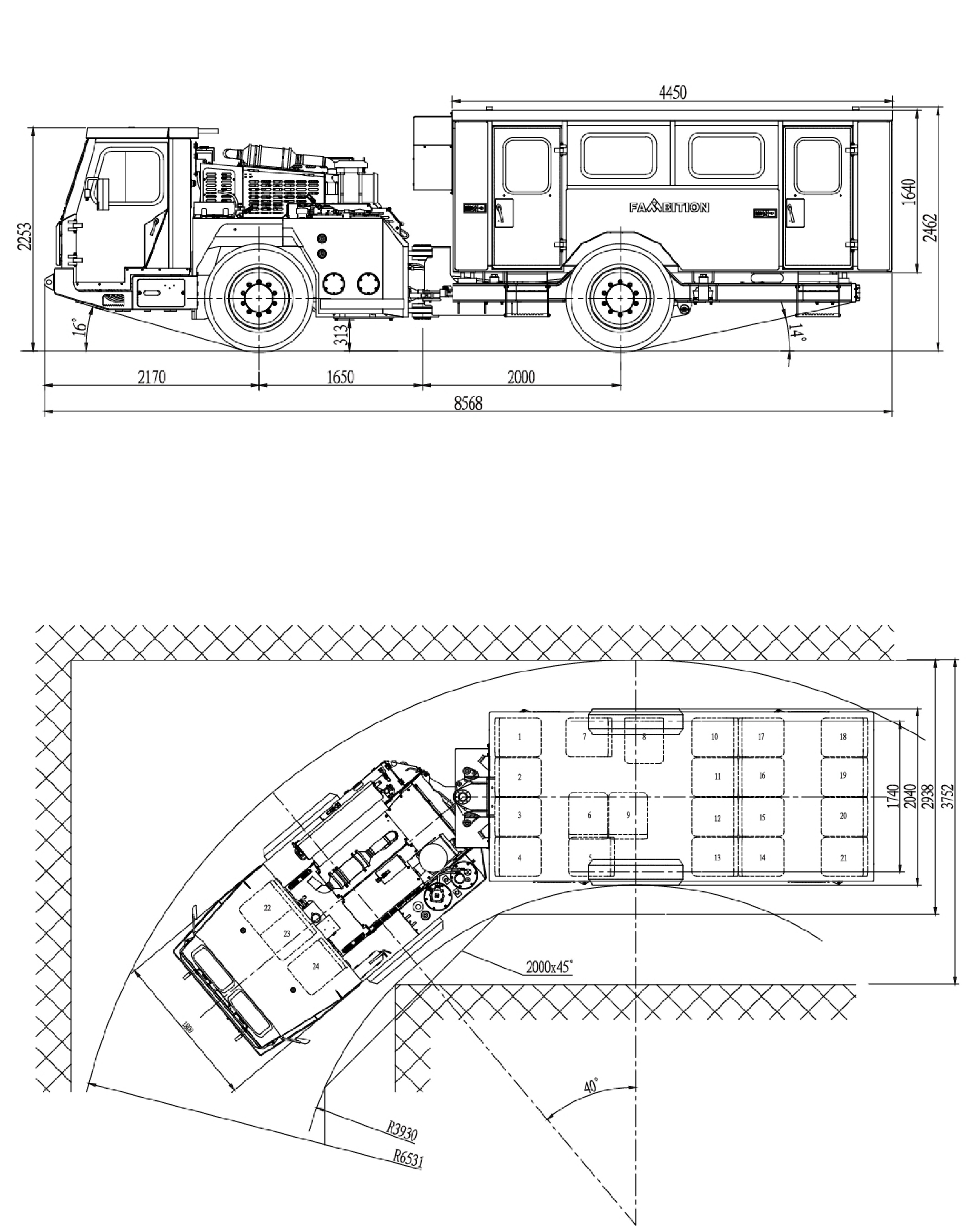

| Dimensions | Length: 8,568 mm Width: 2,040 mm Height: 2,462 mm Ground clearance: 313 mm Steering angle: ±40° Inner turning radius: 3,930 mm Outer turning radius: 6,531 mm |
| Power System | Engine: Cummins QSB4.5 EFI, water cooled, 119 kW @ 2,300 rpm, 624 Nm @ 1,500 rpm, Tier 3 / Euro Stage III B Exhaust system: DOC catalytic purifier & muffler Transmission & torque converter: Dana 24000 Electrically controlled gear shifting Axle: Dana 123 SAHR, limited slip differentials Rear axle fixed, front axle oscillating ±10° Tire size: 10.00 – 20 PR16 |
| Electrical System | Electric relay: Bosch Circuit breaker: ABB Connector: TE Controller: HYDAC TTC60 Engine fault detection Battery: 2*12 V Camel |
| Safety & Options | Flashing beaconPortable fire protection 3*4 kg Alarm horn 107 dB Communication system between cabin and personnel compartment Emergency stop button in personnel compartment Front and rear LED lightsTurning signals and brake lights |
The FPT24 is a 24-seater underground people truck. The whole vehicle adopts central articulated frame and full hydraulic-powered steering with a compact structure. All parts of the vehicle are from international first-class brands to guarantee the stable operation of the system and ensure driving safety.
| Category | Specification |
|---|---|
| Performance | Carrier capacity: 24 persons Rated payload: 2,400 kg Operating weight: 13,000 kg Max. traction force: 133 kN Environmental temperature: -20℃~+50℃ |
| Speed (Level, Full Load) | 1st gear: 5.2 km/h 2nd gear: 11.0 km/h 3rd gear: 22.0 km/h |
| Hydraulic System | Fully hydraulic powered steering Steering pump: Danfoss variable displacement piston pumps Charging valve & service brake valve: MICO Brake accumulator: Parker Hydraulic oil tank: 130 L (Donaldson oil return filter) |
| Cabin (Enclosed) | FOPS/ROPS certification Cold air conditioning in cabin and personnel compartment Three-point contact access system Mechanical suspension seat Reverse camera |
| Dimensions | Length: 8,568 mm Width: 2,040 mm Height: 2,462 mm Ground clearance: 313 mm Steering angle: ±40° Inner turning radius: 3,930 mm Outer turning radius: 6,531 mm |
| Power System | Engine: Cummins QSB4.5 EFI, water cooled, 119 kW @ 2,300 rpm, 624 Nm @ 1,500 rpm, Tier 3 / Euro Stage III B Exhaust system: DOC catalytic purifier & muffler Transmission & torque converter: Dana 24000 Electrically controlled gear shifting Axle: Dana 123 SAHR, limited slip differentials Rear axle fixed, front axle oscillating ±10° Tire size: 10.00 – 20 PR16 |
| Electrical System | Electric relay: Bosch Circuit breaker: ABB Connector: TE Controller: HYDAC TTC60 Engine fault detection Battery: 2*12 V Camel |
| Safety & Options | Flashing beaconPortable fire protection 3*4 kg Alarm horn 107 dB Communication system between cabin and personnel compartment Emergency stop button in personnel compartment Front and rear LED lightsTurning signals and brake lights |
