18-Passenger Capacity
Comfortably transports up to 18 personnel in a single trip, ideal for efficient underground crew movement.
Premium International Components
Built with globally trusted, high-quality parts for superior reliability and long service life.
Central Articulated Chassis + Full Hydraulic Power Steering
Exceptional flexibility and tight turning radius, perfect for navigating narrow and complex mine tunnels.
High-Safety Braking System
Fully enclosed multi-disc wet brakes with SAHR (Spring Applied Hydraulic Release) fail-safe design for dependable stopping power.
Powerful & Low-Emission Engine
Cummins turbocharged diesel engine meeting China Stage IV emission standards — strong performance with reduced environmental impact.
FOPS/ROPS Certified Cabin
Robust protective structure provides maximum safety for driver and passengers.
Intelligent Multifunctional Display
Real-time monitoring of vehicle status with built-in diagnostic support for quick troubleshooting.
Universal Quick-Attach Chassis System
One vehicle, endless possibilities — supports rapid switching between personnel transport, cargo, maintenance, and other specialized attachments.
5-Minute Rapid Attachment Change
Industry-leading quick-change system allows full tool/attachment swaps in just 5 minutes, minimizing downtime.

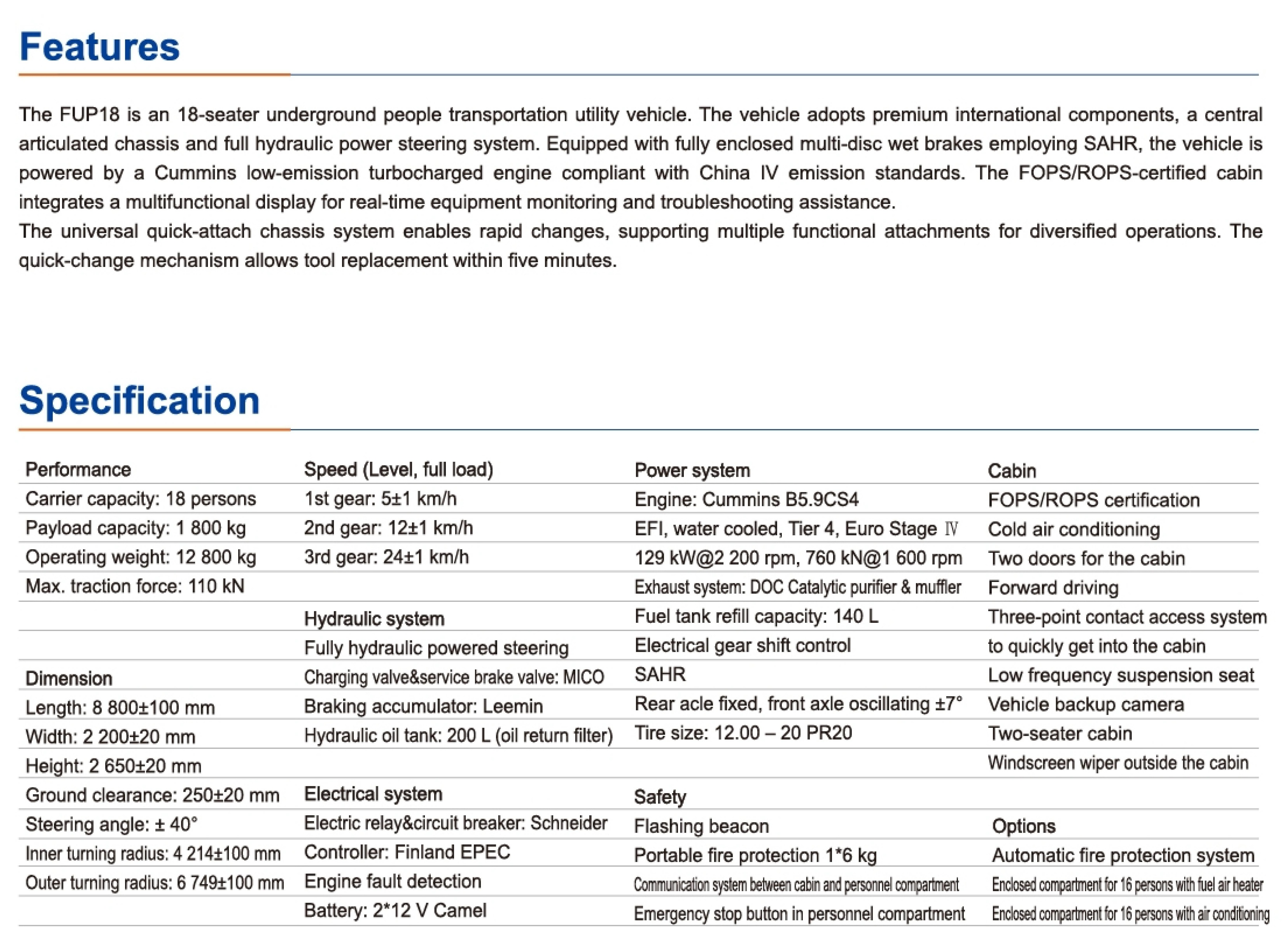

| Category | Specification |
|---|---|
| Performance | Carrier capacity: 18 persons Payload capacity: 1,800 kg Operating weight: 12,800 kg Max. traction force: 110 kN |
| Speed (Level, Full Load) | 1st gear: 5 ±1 km/h 2nd gear: 12 ±1 km/h 3rd gear: 24 ±1 km/h |
| Power System | Engine: Cummins B5.9CS4 EFI, water cooled, Tier 4 / Euro Stage IV 129 kW @ 2,200 rpm, Torque: 760 kN @ 1,600 rpm Exhaust system: DOC catalytic purifier & muffler Fuel tank refill capacity: 140 L Electrical gear shift control |
| Hydraulic System | Fully hydraulic powered steering Charging valve & service brake valve: MICO Braking accumulator: Leemin Hydraulic oil tank: 200 L (with oil return filter) SAHR Rear axle fixed, front axle oscillating ±7° Tire size: 12.00 – 20 PR20 |
| Cabin | FOPS/ROPS certification Cold air conditioning Two doors Three-point contact access system Low frequency suspension seat Vehicle backup camera Forward driving Two-seater cabin Windscreen wiper outside the cabin |

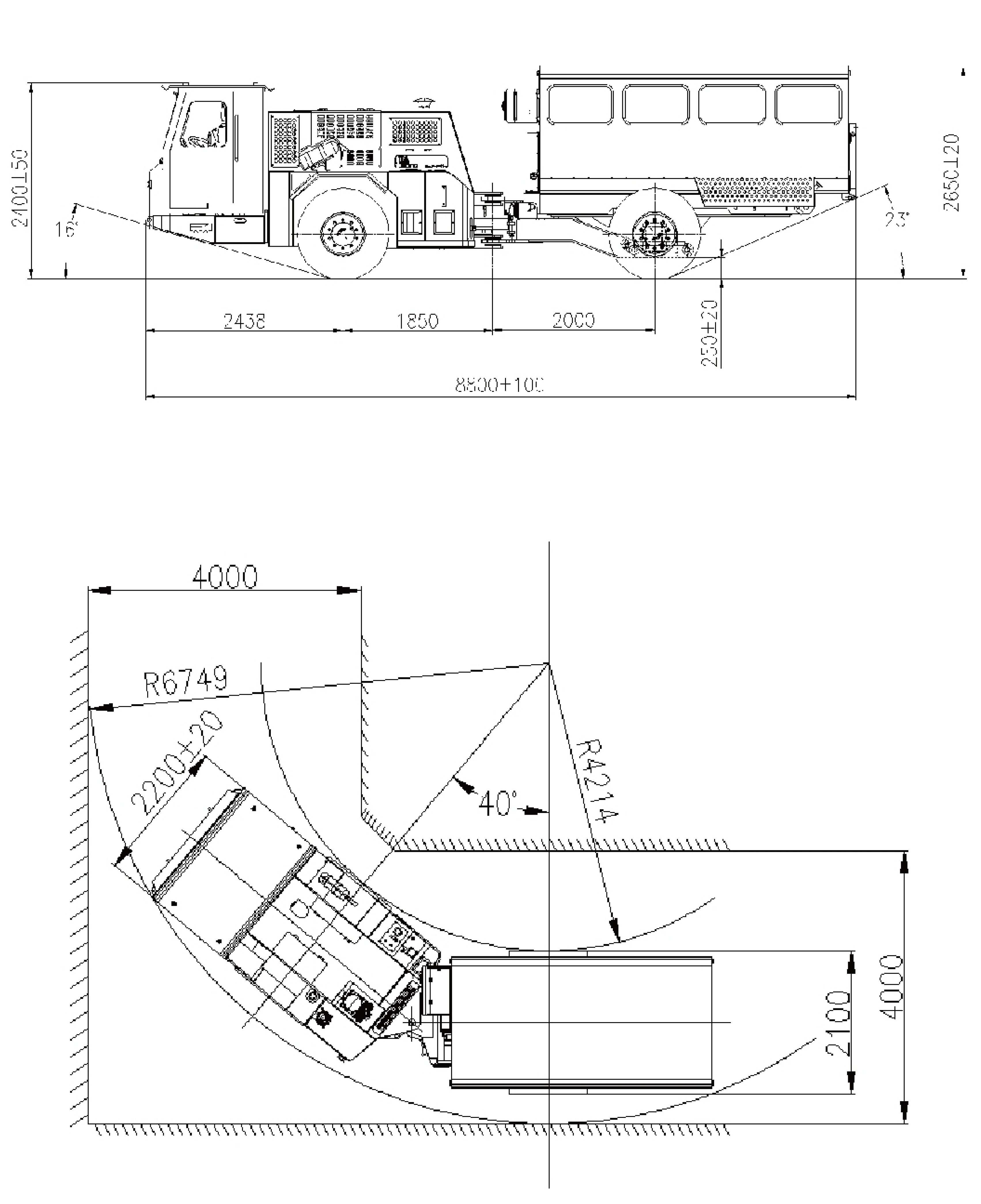

| Dimensions | Length: 8,800 ±100 m mWidth: 2,200 ±20 mm Height: 2,650 ±20 mm Ground clearance: 250 ±20 mm Steering angle: ±40° Inner turning radius: 4,214 ±100 mm Outer turning radius: 6,749 ±100 mm |
| Electrical System | Electric relay & circuit breaker: Schneider Controller: Finland EPEC Engine fault detection Battery: 2*12 V Camel |
| Safety | Emergency stop button in personnel compartment Flashing beaconPortable fire protection 1*6 kg |
| Options / Accessories | Enclosed compartment for 16 persons with fuel air heater Enclosed compartment for 16 persons with air conditioning Communication system between cabin and personnel compartment Automatic fire protection system |
