FUD05
FAMBITION
FUD05 is a fuel transporting vehicle specially designed for underground mines, Max payload 6000L. The front and rear frame adopts ariculated connection. FUD05 is steered by a steering gear with a small turning radius, which is suitable for underground roadway operation. The driver cabin is certficated by FOPS/ROPS that ensures the safety of personnel. The control system is based on CAN-bus bus design, FET electronic technicians, the on-board display screen can display the operating parameters in realtime, and FUD05 has the functions of fault waming and self-diagnosis.
▍Specification
Performance | Turning radius |
Rated fuel tank capacity: 6000L | Steering angle: ±40° |
Rated payload: 5000 kg | Inner turning radius: 4548 mm |
| Operating weigh: 10000 kg | Outer turning radius: 7000 mm |
Driver cabin | |
ISO ROPS/FOPS certificated | Speed (level, full loaded) |
| 1st gear: 4.9 km/h | |
| Dimension | 2nd gear: 12.5 km/h |
Length: 8289 mm | 3rd gear: 23.7 km/h |
Width: 1800 m | |
Height: 2468 mm | Hydraulic System |
Ground clearance ≥309 mm | Steering pump: Danfoss |
| Charging valve/pedal valve: MICO | |
Parking solenoid: Wagers | |
| Power System | Cabin(Enclosed) |
Engine: Cummins QSB4.5, | FOPS/ROPS Certification |
electric control, water cooled, 97 | Closed Air Conditioning and Heating Cabin |
kW, Tier 3 | Three-point Contact Access System to |
Exhaust System: Canada, | Quickly Get into the Cabin |
Catalytic platinum purifier & silencer | Suspension Seat |
Transmission: DANA T20000 | |
Axle: DANA 112, mining rigid axle. | Brake System |
| oscillation±10°, fixed rear axle. | Service brake: Hydraulic brake, |
| Tire size: 10.00-20 | Hydraulic oil forced collong |
| Parking brake, Spring brake |

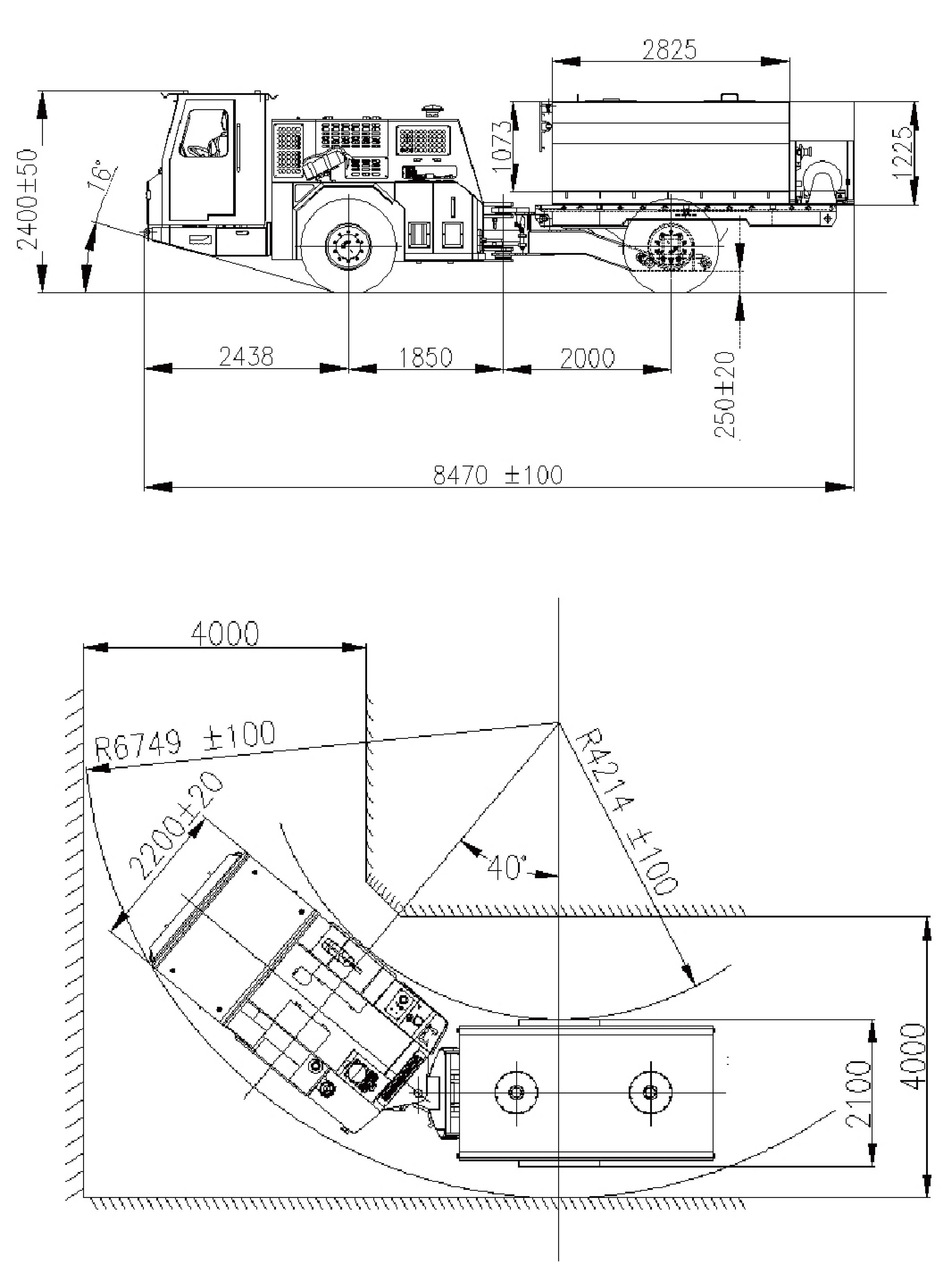

▍Device view
▍Steering view
▍Benefits
High Payload Capacity: With a 6000L capacity, the FUD05 can carry a large amount of fuel, making it efficient for heavy-duty underground operations.
Maneuverability: The articulated front and rear frames, combined with a small turning radius, make it ideal for navigating narrow underground roadways.
Operator Safety: The FOPS/ROPS certified driver cabin minimizes the risk of injury, ensuring safe operation in hazardous environments.
Efficient Control System: The CAN-bus design simplifies communication between components, while the fault detection system enables quick issue identification, reducing downtime.
Real-Time Monitoring: The on-board display screen allows operators to monitor key performance data, improving operational awareness and decision-making.
Space-Efficient Design: The compact design ensures that the vehicle operates efficiently even in confined underground spaces where space is limited.
▍Applications
Service Stations: The FUD05 can efficiently transport and store fuel for commercial refueling stations, ensuring that vehicles can be quickly and reliably fueled, minimizing wait times for customers.
Private Fuel Stations: At industrial and commercial sites, the FUD05 provides secure storage for fuel, offering businesses a reliable and consistent source of fuel for internal operations and equipment needs.
Generator Fueling: Used to transport and store diesel fuel for generators, the FUD05 ensures that critical backup power systems have a steady supply, reducing the risk of energy shortages during emergencies or power outages.
Aircraft and Ship Fuel Storage: FUD05 facilitates the safe storage and transportation of aviation and marine fuels, supporting airports and shipping operations with secure and efficient fuel management, which is essential for keeping operations running smoothly.
FUD05 is a fuel transporting vehicle specially designed for underground mines, Max payload 6000L. The front and rear frame adopts ariculated connection. FUD05 is steered by a steering gear with a small turning radius, which is suitable for underground roadway operation. The driver cabin is certficated by FOPS/ROPS that ensures the safety of personnel. The control system is based on CAN-bus bus design, FET electronic technicians, the on-board display screen can display the operating parameters in realtime, and FUD05 has the functions of fault waming and self-diagnosis.
