FUD03
FAMBITION
FUD03 is a fuel transport vehicle specially designed for underground mines and can carry up to 3500L. The transport vehicle adopts an
articulated front and rear frame, steering with a steering gear, and a small urning radius, which is suitable for underground roadway operation. The cabin is designed in accordance with ISO ROPS/FOPS certification standards to ensure the safety of personnel. The control system is based on CAN-bus bus design, FET electronic technicians, the on-board display screen can display the operating parameters in real ime, and has the functions of fault warning and self-diagnosis.
▍Specification
Performance | Turning radius |
Rated fuel tank capacity: 3500L | Steering angle: ±40° |
Rated payload: 3000 kg | Inner turning radius: 3947 mm |
| Operating weigh: 9500 kg | Outer turning radius: 6080 mm |
Driver cabin | |
ISO ROPS/FOPS certificated | Speed (level,full loaded) |
| 1st gear: 5.0 km/h | |
| Dimension | 2nd gear: 12.5 km/h |
Length: 7781 mm | 3rd gear: 23.7 km/h |
Width: 1800 m | |
Height: 2215 mm | Hydraulic System |
Ground clearance ≥309 mm | Steering pump: Danfoss |
| Charging valve/pedal valve: MICO | |
Parking solenoid: Wagers | |
| Power System | Cabin(Enclosed) |
Engine: Cummins QSB4.5, | FOPS/ROPS Certification |
electric control, water cooled, 97 | Closed Air Conditioning and Heating Cabin |
kW, Tier 3 | Three-point Contact Access System to |
Exhaust System: Canada, | Quickly Get into the Cabin |
Catalytic platinum purifier & silencer | Suspension Seat |
Transmission: DANA T20000 | |
Axle: DANA 112, mining rigid axle. | Brake System |
| oscillation±10°, fixed rear axle. | Service brake: Hydraulic brake, |
| Tire size: 10.00-20 | Hydraulic oil forced collong |
| Parking brake, Spring brake |

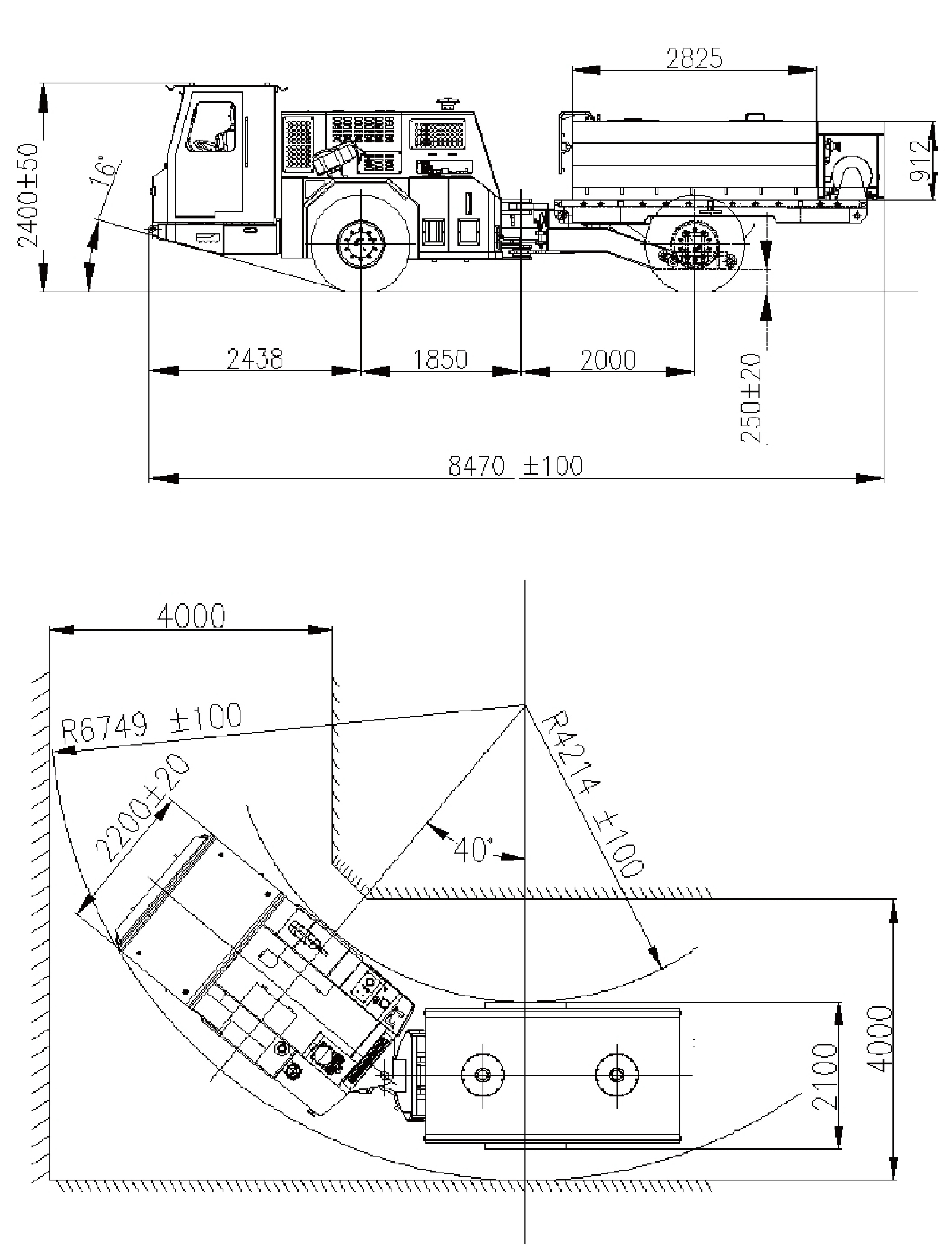

▍Device view
▍Steering view
▍Benefits
Durability & Safety: Built for tough underground environments with a ROPS/FOPS-certified cabin, ensuring operator protection.
Efficiency: On-site fueling minimizes downtime and keeps your operations running smoothly, even in remote areas.
Compact Design: The vehicle’s small turning radius and articulated frame enable easy navigation in confined underground spaces.
Real-Time Monitoring: The onboard display shows key operating parameters and allows for immediate fault detection and self-diagnosis.
Ease of Use: The CAN-bus control system simplifies operation and maintenance, improving productivity and reducing the need for extensive training.
▍Applications
Underground Mine Fueling: The FUD03 fuel transport vehicle is optimized for fueling operations in underground mines. With its compact design and safety features, it ensures safe and efficient fueling in confined, hazardous underground spaces.
Fleet Fueling Solutions: The FUD03 offers a reliable on-site fueling solution for fleet vehicles. By eliminating the need for third-party fueling services, it reduces downtime, boosts operational efficiency, and keeps your fleet running continuously without interruptions.
Fueling in Remote Locations: Designed for tough conditions, the FUD03 is ideal for fueling vehicles in remote locations. Whether working in remote construction sites or distant mining areas, this fuel transport vehicle ensures your operations are never interrupted by lack of fueling infrastructure.
Heavy-Duty Industry Fueling: Built for durability, the FUD03 is perfect for heavy-duty industries like mining, construction, and manufacturing. It offers a robust fueling solution that can withstand harsh environments, keeping your equipment operational and minimizing fuel-related downtime.
