FL07E
FL07E is a 7-ton electric LHD designed for medium-sized underground metal mines.
FL07E equipped with horizontal reel system that enables the LHD pass the junction box without a U-Turn. It makes driving simple and flexible. The power cabinet on the LHD can protect the personnel and equipment from all electric danger. The towing system allows the LHD to move easily and safely.
The FL07E LHD is equipped with an electro-hydraulic controlled variable hydraulic system, and a constant tension induction automatic control cable-reel system. The on-board display screen can display the operating parameters of the LHD in real time and has a self-diagnosis function Equipped with standard visible radio remote control system, options are automatic centralized lubrication system and Ansul centralized fire protection system.

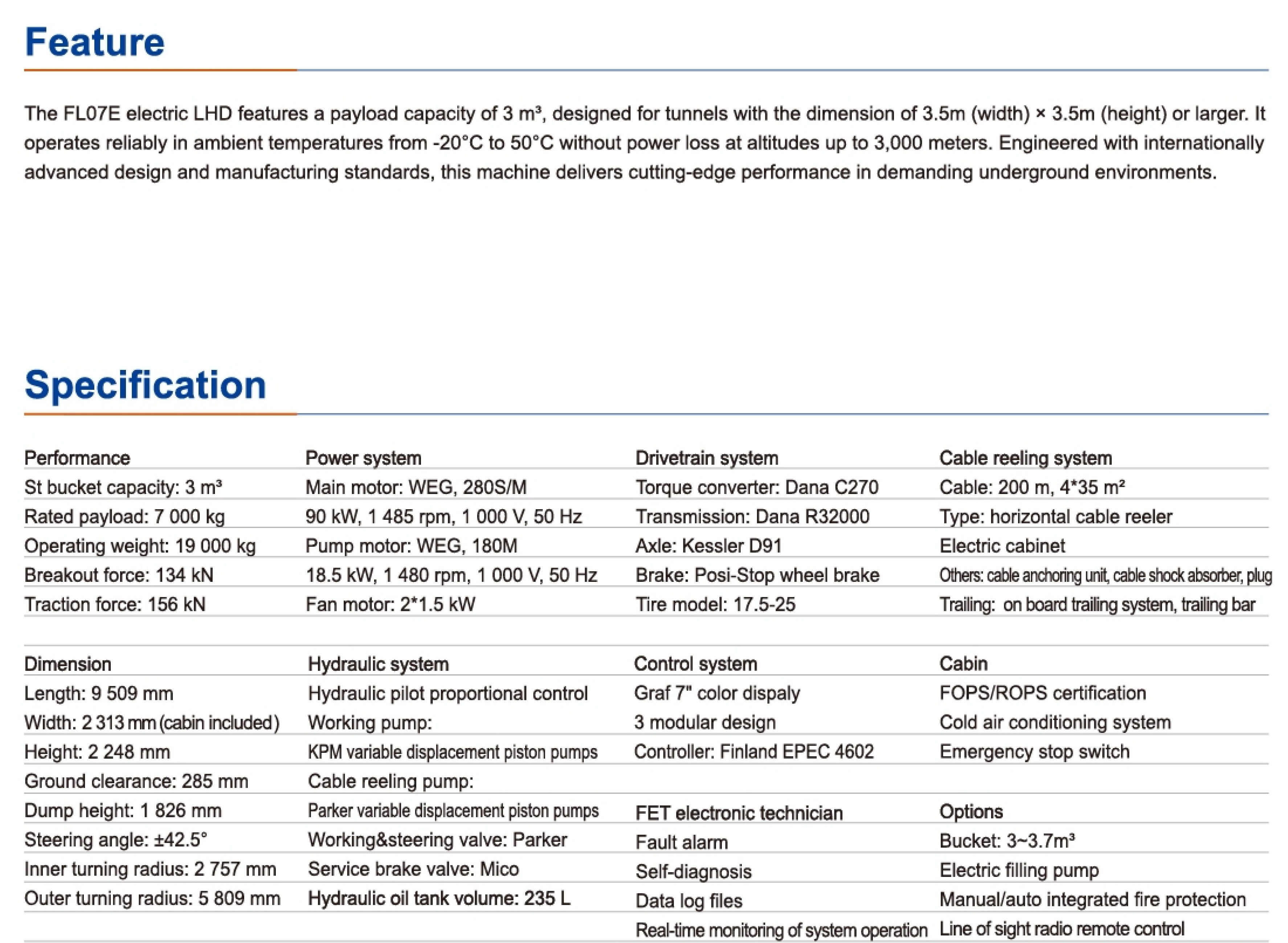

▍Specification
Performance | Power system |
| St bucket capacity: 3m³ | Main motor: WEG, 280S/M |
| Rated payload: 7000kg | 90kW, 1485 rpm, 1000V, 50Hz |
| Operating weight: 19000kg | Pump motor: WEG,280M |
| Breakout force: 134kN | 18.5kW, 1480 rpm, 1000V, 50Hz |
| Traction force: 156kN | Fan motor: 2x1.5kW |
| Dimension | Hydraulic system |
| Length: 9509mm | Hydraulic pump: KPM |
| Width: 2313mm（cabin included） | Load sensing variable plunger |
| Height: 2248mm | double pump |
| Ground clearance: 285mm | Working valve: Parker |
| Dump height: 186mm | Steering valve: Parker |
| Steering angle: ±42.5° | |
| Inner turning radius: 2757mm | Hydraulic oil tank volume: 300L |
| Outer turning radius: 5809mm | |
| Drivetrain system | Cable reling system |
| Torque converter: DANAC270 | Cable: 200m, 4x35mm² |
Transmission: DANAR3200 | Type: horizontal cable reeler |
Axle: Kessler D91 | Electric cabinet(IT) |
Brake: Posi-Stop wheel brak | Others: cable anchor, cable cushion, plug |
| Tire model: 17.5-25 | Trailing: on board trailing system, trailing bar |
| Control system | Cabin |
| FET electronic technician | FOPS/ROPS Certified |
| CAN-bus technology | Enclosed cabin with air conditione |
7"color dispaly | Manual central lubrication |
| 3 modular design | |
| Radio remote control device | Option |
| Trouble alarm | Bucket: 3~3.7m³ |
Self-diagnosis | Lincoln auto lubrication system |
Data log download | Ansul auto fire suppression system |

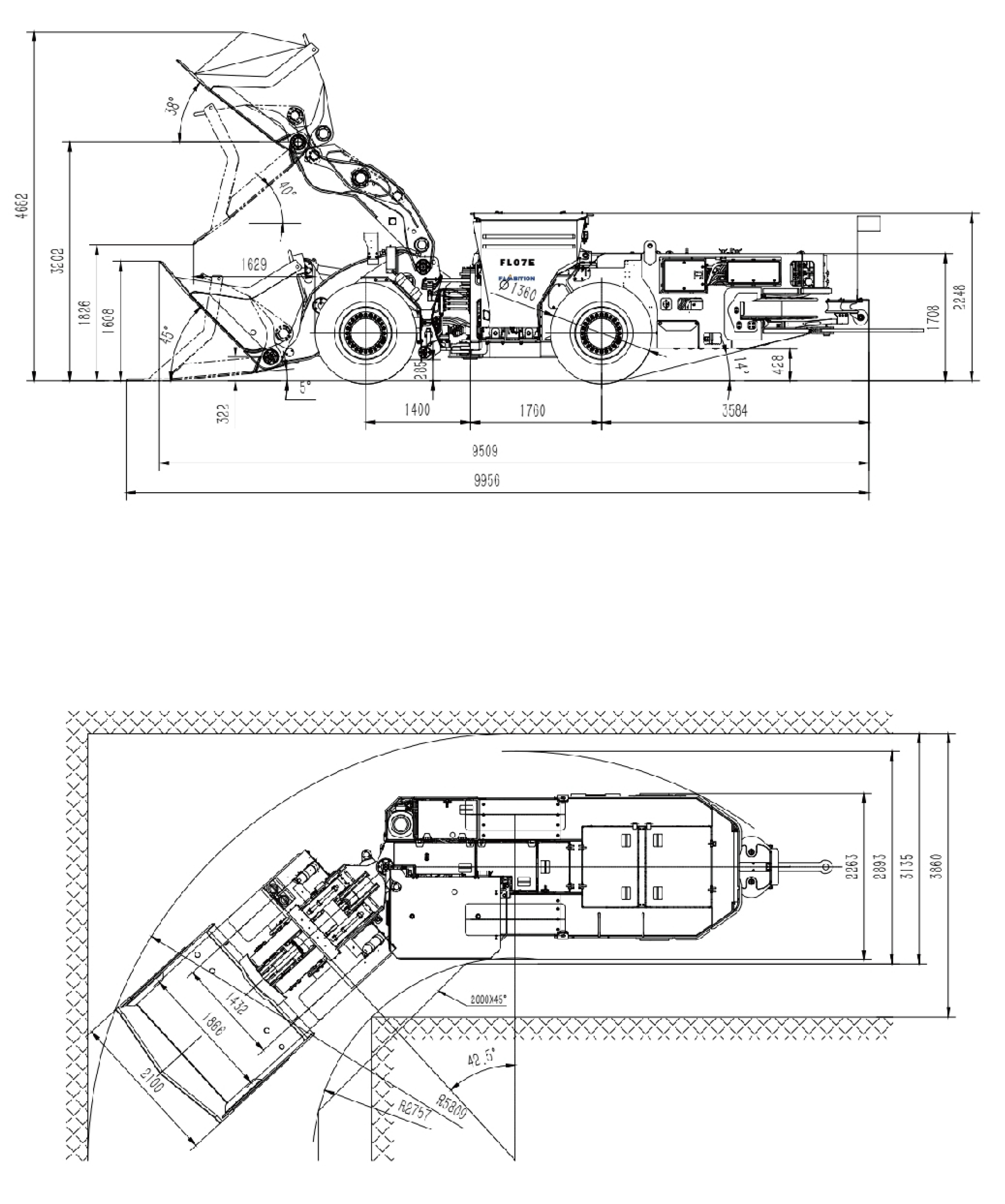

▍Device view
▍Steering view
▍Benefits
Enhanced Safety: The enclosed cab with air conditioning and FOPS/ROPS certification provides protection for operators in hazardous conditions.
High Payload Capacity: With a rated payload of 7000 kg, it efficiently handles heavy materials in challenging environments.
Compact Design: Its horizontal reel system allows it to pass junction boxes without a U-turn, making it perfect for tight spaces.
Ergonomics: The ergonomically designed controls and steering positions enhance operator comfort and reduce fatigue during long shifts.
Reliability: Built with durable hydraulic components and a robust performance management system to ensure consistent, reliable operation.
Low Maintenance: The FL07E is designed for easy maintenance, with daily tasks manageable from ground level, minimizing downtime.
▍Applications
Underground Metal Mines: Perfect for transporting materials in metal mining, increasing both efficiency and safety in harsh underground conditions.
Tunnel Construction: Efficiently handles material movement during tunnel excavation, improving workflow and reducing delays.
General Material Handling: Ideal for tasks that require powerful, flexible transport solutions in narrow, confined spaces.
Mining Equipment Fleet: Enhances a fleet of mining vehicles by offering reliable material movement and minimizing downtime for increased productivity.
Fire Safety and Maintenance: With optional Ansul fire suppression and Lincoln auto lubrication systems, it ensures safe and smooth operation, even in high-risk areas.
FL07E is a 7-ton electric LHD designed for medium-sized underground metal mines.
FL07E equipped with horizontal reel system that enables the LHD pass the junction box without a U-Turn. It makes driving simple and flexible. The power cabinet on the LHD can protect the personnel and equipment from all electric danger. The towing system allows the LHD to move easily and safely.
The FL07E LHD is equipped with an electro-hydraulic controlled variable hydraulic system, and a constant tension induction automatic control cable-reel system. The on-board display screen can display the operating parameters of the LHD in real time and has a self-diagnosis function Equipped with standard visible radio remote control system, options are automatic centralized lubrication system and Ansul centralized fire protection system.
▍Specification
Performance | Power system |
| St bucket capacity: 3m³ | Main motor: WEG, 280S/M |
| Rated payload: 7000kg | 90kW, 1485 rpm, 1000V, 50Hz |
| Operating weight: 19000kg | Pump motor: WEG,280M |
| Breakout force: 134kN | 18.5kW, 1480 rpm, 1000V, 50Hz |
| Traction force: 156kN | Fan motor: 2x1.5kW |
| Dimension | Hydraulic system |
| Length: 9509mm | Hydraulic pump: KPM |
| Width: 2313mm（cabin included） | Load sensing variable plunger |
| Height: 2248mm | double pump |
| Ground clearance: 285mm | Working valve: Parker |
| Dump height: 186mm | Steering valve: Parker |
| Steering angle: ±42.5° | |
| Inner turning radius: 2757mm | Hydraulic oil tank volume: 300L |
| Outer turning radius: 5809mm | |
| Drivetrain system | Cable reling system |
| Torque converter: DANAC270 | Cable: 200m, 4x35mm² |
Transmission: DANAR3200 | Type: horizontal cable reeler |
Axle: Kessler D91 | Electric cabinet(IT) |
Brake: Posi-Stop wheel brak | Others: cable anchor, cable cushion, plug |
| Tire model: 17.5-25 | Trailing: on board trailing system, trailing bar |
| Control system | Cabin |
| FET electronic technician | FOPS/ROPS Certified |
| CAN-bus technology | Enclosed cabin with air conditione |
7"color dispaly | Manual central lubrication |
| 3 modular design | |
| Radio remote control device | Option |
| Trouble alarm | Bucket: 3~3.7m³ |
Self-diagnosis | Lincoln auto lubrication system |
Data log download | Ansul auto fire suppression system |
▍Device view
▍Steering view
▍Benefits
Enhanced Safety: The enclosed cab with air conditioning and FOPS/ROPS certification provides protection for operators in hazardous conditions.
High Payload Capacity: With a rated payload of 7000 kg, it efficiently handles heavy materials in challenging environments.
Compact Design: Its horizontal reel system allows it to pass junction boxes without a U-turn, making it perfect for tight spaces.
Ergonomics: The ergonomically designed controls and steering positions enhance operator comfort and reduce fatigue during long shifts.
Reliability: Built with durable hydraulic components and a robust performance management system to ensure consistent, reliable operation.
Low Maintenance: The FL07E is designed for easy maintenance, with daily tasks manageable from ground level, minimizing downtime.
▍Applications
Underground Metal Mines: Perfect for transporting materials in metal mining, increasing both efficiency and safety in harsh underground conditions.
Tunnel Construction: Efficiently handles material movement during tunnel excavation, improving workflow and reducing delays.
General Material Handling: Ideal for tasks that require powerful, flexible transport solutions in narrow, confined spaces.
Mining Equipment Fleet: Enhances a fleet of mining vehicles by offering reliable material movement and minimizing downtime for increased productivity.
Fire Safety and Maintenance: With optional Ansul fire suppression and Lincoln auto lubrication systems, it ensures safe and smooth operation, even in high-risk areas.
